CDRH62--127
Product name :
CDRH62--127
( 2228 reviews ) Views:2207
Color :
Size:
Material:
Special Features:
Small surface mount power inductors
Small, thin, high-energy storage, low DC resistance
A magnetic shield resistance to high current
Reel packaging, easily automated meter Mount
Mainly used in handheld computers, digital audio-visual products and other precision industrial equipment
Properties and Applications
● Carrier tape packing used SMT.
● resistant to high current, low current, square; Width: 6.2mm ~ 12mm, height: 3.0mm ~ 8.0mm.
● magnetic shielding structure.
● Suitable for reflow SMT process.
● Lead-free products are RoHS compliant.
● Widely used in buck converter, camcorders, LCD, laptops, network communications, power supply and other portable communications equipment.

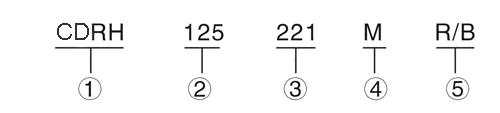

Product labeling
① Product Type: CDRH type.
② Dimensions: 12 represents a wide 12 mm; 5 indicates high 5mm.
③ electrical performance, said: 221 said 220μH.
④ tolerances: K means ± 10%, M means ± 20%, N means ± 30%.
⑤ Packing: R represents carrier tape reel; B represents the bulk.
Dimensions (Unit: mm)
Electrical properties
|
TYPE |
H(Max) |
N |
I |
J |
Fig |
|
3.0 |
1.9 |
1.4 |
4.6 |
1 |
|
|
5.0 |
1.9 |
1.4 |
4.6 |
1 |
|
|
3.4 |
2.2 |
1.6 |
4.8 |
2 |
|
|
4.5 |
2.2 |
1.6 |
4.8 |
2 |
|
|
4.5 |
5.4 |
2.9 |
7.0 |
3 |
|
|
6.0 |
5.4 |
2.9 |
7.0 |
3 |
|
|
8.0 |
5.4 |
2.9 |
7.0 |
3 |
Use and storage recommendations
l When SMT placement, ambient temperature between 230 ℃ ~ 260 ℃, time ≦ 6 seconds.
l hand-solder, solder pot temperature between 350 ℃ ~ 420 ℃, time ≦ 3 seconds.
l Working temperature: -25 ℃, +80 ℃.
l Storage: stored at room temperature and away from volatile chemical gases or liquids. Save time over 12 months or more products face should be done antioxidant treatment has been tested before use.
