Product Description
1.Carbonyl powder inductor.
2.Compact design.
3.High current，low DCR，high efficiency.
4.Very low acoustic noise and very low leakage flux noise.
5.High reliability.
6.100% Lead(Pb) & Halogen-Free and RoHS compliant.

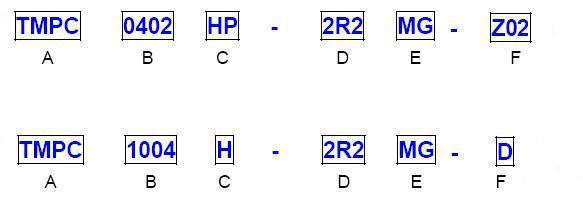

Part Numbering
|
A:
|
Series
|
|
B:
|
Dimension (B x C )
|
|
C:
|
Type (H: Carbonyl powder；P: PAD broaden )
|
|
D:
|
Inductance (2R2=2.20uH )
|
|
E:
|
Inductance Tolerance ("M=±20%,Y=±30%；印字:黑色) (單向印字" )
|
|
F:
|
Control S/N
|
|
Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
|
0302 |
3.5±0.2 |
3.2±0.2 |
1.8±0.2 |
0.7±0.2 |
1.2±0.2 |
|
0401 |
4.45±0.25 |
4.06±0.25 |
0.8±0.2 |
0.76±0.30 |
1.5±0.20 |
|
0402 |
4.45±0.25 |
4.06±0.25 |
1.8±0.2 |
0.76±0.30 |
2.0±0.20 |
|
0412 |
4.45±0.25 |
4.06±0.25 |
1.0±0.2 |
0.76±0.30 |
2.0±0.20 |
|
0418 |
4.45±0.25 |
4.06±0.25 |
1.6±0.2 |
0.76±0.30 |
2.0±0.20 |
|
0502 |
5.7±0.3 |
5.2±0.2 |
1.8±0.2 |
1.1±0.3 |
2.5±0.3 |
|
0503 |
5.7±0.3 |
5.2±0.2 |
2.8±0.2 |
1.1±0.3 |
1.5±0.2 |
|
0512 |
5.7±0.3 |
5.2±0.2 |
1.0±0.2 |
1.1±0.3 |
2.5±0.3 |
|
0515 |
5.7±0.3 |
5.2±0.2 |
1.3±0.2 |
1.1±0.3 |
2.5±0.3 |
|
0518 |
5.7±0.3 |
5.2±0.2 |
1.6±0.2 |
1.1±0.3 |
2.5±0.3 |
|
0503 |
4.9±0.3 |
4.7±0.2 |
2.8±0.2 |
1.0±0.3 |
1.5±0.3 |
|
0602 |
7.0±0.3 |
6.6±0.3 |
1.8±0.2 |
1.8±0.3 |
3.0±0.3 |
|
0603 |
7.3±0.3 |
6.6±0.3 |
2.8±0.2 |
1.8±0.3 |
3.0±0.3 |
|
0605 |
7.3±0.3 |
6.6±0.3 |
4.8±0.2 |
1.8±0.3 |
3.0±0.3 |
|
0612 |
7.0±0.3 |
6.6±0.3 |
1.0±0.2 |
1.8±0.3 |
2.5±0.3 |
|
0615 |
7.0±0.3 |
6.6±0.3 |
1.3±0.2 |
1.8±0.3 |
3.0±0.3 |
|
0618 |
7.0±0.3 |
6.6±0.3 |
1.6±0.2 |
1.8±0.3 |
3.0±0.3 |
|
0624 |
7.0±0.3 |
6.6±0.3 |
2.2±0.2 |
1.8±0.3 |
3.0±0.3 |
|
1004 |
11.0±0.5 |
10.0±0.3 |
3.8±0.2 |
2.3±0.3 |
3.0±0.3 |
|
1206 |
13.5±0.5 |
12.5±0.3 |
5.7±0.3 |
2.3±0.3 |
4.7±0.3 |
|
1265 |
13.5±0.5 |
12.5±0.3 |
6.2±0.3 |
2.3±0.3 |
4.7±0.3 |
|
1707 |
16.9±0.3 |
16.9±0.3 |
6.7±0.3 |
2.1±0.3 |
11.9±0.3 |
|
505015 |
5.0±0.3 |
5.0±0.2 |
1.3±0.2 |
1.1±0.3 |
1.5±0.2
|
Eletrical Characteristics
Package Size:
TMPC0302
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0302H-R47MG |
0.47±20% |
7 |
9 |
19.7 |
23 |
|
TMPC0302H-R68MG |
0.68±20% |
5.5 |
7 |
25.5 |
29 |
|
TMPC0302H-1R0MG |
1.00±20% |
4 |
5 |
32 |
38 |
|
TMPC0302H-1R5MG |
1.50±20% |
3.8 |
4 |
42 |
50 |
|
TMPC0302H-2R2MG |
2.20±20% |
3.5 |
3.7 |
65 |
75 |
|
TMPC0302H-3R3MG |
3.30±20% |
3 |
3.5 |
125 |
145 |
|
TMPC0302H-4R7MG |
4.70±20% |
2.6 |
3 |
172 |
200 |
|
TMPC0302H-5R6MG |
5.60±20% |
2.2 |
2.6 |
205 |
238 |
|
TMPC0302H-6R8MG |
6.80±20% |
1.9 |
2.2 |
260 |
300 |
|
TMPC0302H-8R2MG |
8.20±20% |
1.6 |
1.9 |
340 |
390 |
|
TMPC0302H-100MG |
10.0±20% |
1.4 |
1.6 |
366 |
422 |
Package Size:
TMPC0401
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0401H-1R0MG |
1.00±20% |
3.6 |
5.5 |
50 |
58 |
|
TMPC0401H-1R2MG |
1.20±20% |
3.4 |
5 |
53 |
62 |
|
TMPC0401H-1R5MG |
1.50±20% |
2.6 |
3.7 |
67 |
78 |
|
TMPC0401H-2R2MG |
2.20±20% |
2.3 |
3.4 |
95 |
112 |
|
TMPC0401H-3R3MG |
3.30±20% |
2.1 |
2.8 |
156 |
188 |
|
TMPC0401H-4R7MG |
4.70±20% |
1.7 |
2.2 |
262 |
315 |
|
TMPC0401H-5R6MG |
5.60±20% |
1.5 |
2 |
306 |
368 |
|
TMPC0401H-6R8MG |
6.80±20% |
1.3 |
1.7 |
386 |
463 |
|
TMPC0401H-8R2MG |
8.20±20% |
1.2 |
1.6 |
500 |
585 |
|
TMPC0401H-100MG |
10.0±20% |
1.1 |
1.4 |
550 |
650 |
|
|
|
|
Package Size:
TMPC0402
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0402HP-R10YG-Z02 |
0.10±30% |
12 |
35 |
3.2 |
4 |
|
TMPC0402HP-R22YG-Z02 |
0.22±30% |
13 |
24 |
6.6 |
7.3 |
|
TMPC0402HP-R33MG-Z02 |
0.33±20% |
10 |
18 |
7.8 |
8.6 |
|
TMPC0402HP-R47MG-Z02 |
0.47±20% |
8 |
12 |
11.2 |
14 |
|
TMPC0402HP-R56MG-Z02 |
0.56±20% |
7.3 |
10 |
13.5 |
16 |
|
TMPC0402HP-R68MG-Z02 |
0.68±20% |
7 |
10 |
16 |
19 |
|
TMPC0402HP-1R0MG-Z02 |
1.00±20% |
5 |
8.5 |
22 |
27 |
|
TMPC0402HP-1R2MG-Z02 |
1.20±20% |
4.8 |
7.8 |
25 |
30 |
|
TMPC0402HP-1R5MG-Z02 |
1.50±20% |
4.5 |
7 |
34.8 |
42 |
|
TMPC0402HP-3R3MG-Z02 |
3.30±20% |
3.5 |
4 |
69 |
76 |
TMPC0402HP-4R7MG-Z02 |
4.70±20% |
2.6 |
3.5 |
95 |
105 |
TMPC0402HP-5R6MG-Z02 |
5.60±20% |
2.2 |
3 |
112 |
125 |
TMPC0402HP-6R8MG-Z02 |
6.80±20% |
2.1 |
2.8 |
150 |
172 |
TMPC0402HP-8R2MG-Z02 |
8.20±20% |
2 |
2.5 |
158 |
180 |
TMPC0402HP-100MG-Z02 |
10.0±20% |
1.8 |
2.3 |
215 |
243 |
TMPC0402HP-150MG-Z02 |
15.0±20% |
1.5 |
1.9 |
325 |
374 |
TMPC0402HP-220MG-Z02 |
22.0±20% |
1.2 |
1.4 |
470 |
500 |
|
|
Package Size:
TMPC0412
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0412HP-R10YG-Z02 |
0.10±30% |
11.5 |
25 |
4.3 |
5.5 |
|
TMPC0412HP-R22MG-Z02 |
0.22±20% |
8.5 |
20 |
6.6 |
8 |
|
TMPC0412HP-R47MG-Z02 |
0.47±20% |
6 |
6.5 |
18 |
20 |
|
TMPC0412HP-1R0MG-Z02 |
1.00±20% |
4 |
6 |
41 |
47 |
|
TMPC0412HP-1R5MG-Z02 |
1.50±20% |
3 |
4 |
55 |
63.3 |
|
TMPC0412HP-2R2MG-Z02 |
2.20±20% |
2.8 |
3.5 |
69.2 |
80 |
|
TMPC0412HP-3R3MG-Z02 |
3.30±20% |
2.3 |
3 |
84 |
97 |
|
TMPC0412HP-4R7MG-Z02 |
4.70±20% |
2 |
2.5 |
128 |
145 |
|
TMPC0412HP-5R6MG-Z02 |
5.60±20% |
1.7 |
2.3 |
180 |
208 |
|
TMPC0412HP-6R8MG-Z02 |
6.80±20% |
1.5 |
1.7 |
300 |
360 |
TMPC0412HP-8R2MG-Z02 |
8.20±20% |
1.4 |
1.6 |
313 |
376 |
TMPC0412HP-100MG-Z02 |
10.0±20% |
1.3 |
1.4 |
410 |
463 |
Package Size:
TMPC0418
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0418HP-1R0MG-Z02 |
1.00±20% |
4.8 |
6.9 |
24.5 |
30 |
|
TMPC0418HP-2R2MG-Z02 |
2.20±20% |
3.5 |
4.2 |
39 |
45 |
Package Size:
TMPC0502
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0502HP-R33MG-D |
0.33±20% |
12 |
21.3 |
6.3 |
7.3 |
|
TMPC0502HP-R47MG-D |
0.47±20% |
11.5 |
18 |
7.3 |
8.6 |
|
TMPC0502HP-R68MG-D |
0.68±20% |
10 |
12.8 |
11 |
12.4 |
|
TMPC0502HP-1R0MG-D |
1.00±20% |
7 |
13.7 |
17.5 |
20 |
|
TMPC0502HP-1R2MG-D |
1.20±20% |
6.2 |
11 |
23 |
28 |
|
TMPC0502HP-1R5MG-D |
1.50±20% |
5.5 |
9.8 |
26.5 |
30.5 |
|
TMPC0502HP-2R2MG-D |
2.20±20% |
4.2 |
9 |
42 |
50 |
|
TMPC0502HP-3R3MG-D |
3.30±20% |
3.3 |
7.3 |
66 |
76 |
|
TMPC0502HP-4R7MG-D |
4.70±20% |
2.8 |
5 |
103 |
116 |
|
TMPC0502HP-5R6MG-D |
5.60±20% |
2.5 |
4 |
112 |
122 |
|
TMPC0502HP-6R8MG-D |
6.80±20% |
2.4 |
3.8 |
130 |
150 |
|
TMPC0502HP-8R2MG-D |
8.20±20% |
2.3 |
3.5 |
148 |
171 |
|
TMPC0502HP-100MG-D |
10.0±20% |
2.3 |
3.4 |
180 |
199 |
Package Size:
TMPC0503
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0503H-R33MG-D |
0.33±20% |
14 |
18 |
4.3 |
5 |
|
TMPC0503H-R47MG-D |
0.47±20% |
12 |
16 |
6.4 |
7.4 |
|
TMPC0503H-R68MG-D |
0.68±20% |
8.5 |
14 |
10 |
12 |
|
TMPC0503H-1R0MG-D |
1.00±20% |
7 |
11 |
13 |
14 |
|
TMPC0503H-1R2MG-D |
1.20±20% |
6.5 |
11 |
14 |
16 |
|
TMPC0503H-1R5MG-D |
1.50±20% |
6 |
10 |
16 |
25 |
|
TMPC0503H-2R2MG-D |
2.20±20% |
5.5 |
9 |
25 |
35 |
|
TMPC0503H-3R3MG-D |
3.30±20% |
5 |
8 |
32 |
38 |
|
TMPC0503H-4R7MG-D |
4.70±20% |
4.6 |
6 |
50 |
53 |
|
TMPC0503H-5R6MG-D |
5.60±20% |
4.25 |
4.5 |
55 |
63 |
|
TMPC0503H-6R8MG-D |
6.80±20% |
4 |
4.3 |
68 |
76.2 |
|
TMPC0503H-100MG-D |
10.0±20% |
2.75 |
3.5 |
110 |
128 |
Package Size:
TMPC0512
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0512HP-R10YG-D |
0.10±30% |
14 |
14.5 |
4.3 |
5.2 |
|
TMPC0512HP-R22YG-D |
0.22±30% |
10.7 |
14 |
5.5 |
6.7 |
|
TMPC0512HP-R33MG-D |
0.33±20% |
8.5 |
13.5 |
7.8 |
9.4 |
|
TMPC0512HP-R36MG-D |
0.36±20% |
8 |
13 |
10 |
11.5 |
|
TMPC0512HP-R47MG-D |
0.47±20% |
7 |
11 |
13.6 |
15.8 |
|
TMPC0512HP-R68MG-D |
0.68±20% |
6 |
9 |
21.5 |
24.5 |
|
TMPC0512HP-1R0MG-D |
1.00±20% |
5 |
6 |
26 |
30 |
|
TMPC0512HP-1R2MG-D |
1.20±20% |
4.5 |
5.5 |
33 |
40 |
|
TMPC0512HP-1R5MG-D |
1.50±20% |
4 |
5 |
38 |
44 |
|
TMPC0512HP-2R2MG-D |
2.20±20% |
3.5 |
4 |
65 |
75 |
|
TMPC0512HP-3R3MG-D |
3.30±20% |
3 |
3.8 |
75 |
86 |
|
TMPC0512HP-4R7MG-D |
4.70±20% |
2.5 |
3.2 |
100 |
115 |
|
TMPC0512HP-5R6MG-D |
5.60±20% |
2.4 |
2.2 |
175 |
201 |
|
TMPC0512HP-6R8MG-D |
6.80±20% |
2 |
3 |
193 |
222 |
|
TMPC0512HP-8R2MG-D |
8.20±20% |
1.7 |
2.8 |
327 |
378 |
|
TMPC0512HP-100MG-D |
10.0±20% |
1.5 |
1.8 |
335 |
385 |
Package Size:
TMPC0515
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0515HP-R33MG-D |
0.33±20% |
9 |
16 |
8.5 |
9.8 |
|
TMPC0515HP-R47MG-D |
0.47±20% |
8 |
15 |
12 |
13.8 |
|
TMPC0515HP-R68MG-D |
0.68±20% |
7 |
13 |
14 |
16.2 |
|
TMPC0515HP-1R0MG-D |
1.00±20% |
6 |
9 |
22 |
25.3 |
|
TMPC0515HP-1R5MG-D |
1.50±20% |
4.5 |
7 |
39 |
45 |
|
TMPC0515HP-2R2MG-D |
2.20±20% |
4 |
6 |
45 |
52 |
|
TMPC0515HP-3R3MG-D |
3.30±20% |
3.2 |
4.5 |
78 |
90 |
|
TMPC0515HP-4R7MG-D |
4.70±20% |
2.7 |
4 |
103 |
118 |
|
TMPC0515HP-5R6MG-D |
5.60±20% |
2.4 |
3.2 |
126 |
152 |
|
TMPC0515HP-6R8MG-D |
6.80±20% |
2.3 |
3 |
142 |
171 |
|
TMPC0515HP-8R2MG-D |
8.20±20% |
2.1 |
2.6 |
175 |
210 |
|
TMPC0515HP-100MG-D |
10.0±20% |
2 |
2.3 |
210 |
235 |
Package Size:
TMPC0518
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0518HP-R33MG-D |
0.33±20% |
11 |
15 |
7.5 |
8.6 |
|
TMPC0518HP-R47MG-D |
0.47±20% |
10 |
14 |
9.8 |
11.3 |
|
TMPC0518HP-R68MG-D |
0.68±20% |
9 |
13 |
12.4 |
14.3 |
|
TMPC0518HP-1R0MG-D |
1.00±20% |
6.8 |
10 |
18.2 |
21 |
|
TMPC0518HP-1R5MG-D |
1.50±20% |
6 |
9 |
26 |
30 |
|
TMPC0518HP-2R2MG-D |
2.20±20% |
4.5 |
7.5 |
42 |
48.3 |
|
TMPC0518HP-3R3MG-D |
3.30±20% |
3.5 |
5 |
60 |
69 |
|
TMPC0518HP-4R7MG-D |
4.70±20% |
3 |
4.5 |
85 |
98 |
|
TMPC0518HP-5R6MG-D |
5.60±20% |
2.5 |
4 |
110 |
127 |
|
TMPC0518HP-6R8MG-D |
6.80±20% |
2.4 |
3.5 |
118 |
137 |
|
TMPC0518HP-8R2MG-D |
8.20±20% |
2.3 |
3 |
143 |
165 |
|
TMPC0518HP-100MG-D |
10.0±20% |
2.3 |
2.8 |
165 |
190 |
Package Size:
TMPC053
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC053T-R68MG-V01 |
0.68±20% |
8.5 |
14 |
8.1 |
9 |
|
TMPC053T-1R0MG-V01 |
1.00±20% |
7 |
11 |
12.5 |
14 |
|
TMPC053T-1R2MG-V01 |
1.20±20% |
6.5 |
11 |
14 |
16 |
|
TMPC053T-1R5MG-V01 |
1.50±20% |
6 |
10 |
17 |
22 |
|
TMPC053T-2R2MG-V01 |
2.20±20% |
5.5 |
9 |
24 |
27 |
|
TMPC053T-3R3MG-V01 |
3.30±20% |
5 |
7 |
32 |
38 |
|
TMPC053T-4R7MG-V01 |
4.70±20% |
6 |
5 |
50 |
60 |
Package Size:
TMPC0602
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0602H-R10YG-D |
0.10±30% |
21 |
40 |
2 |
2.4 |
|
TMPC0602H-R20YG-D |
0.20±30% |
18 |
35 |
2.5 |
3 |
|
TMPC0602H-R33MG-D |
0.33±20% |
14 |
25 |
4.5 |
5 |
|
TMPC0602H-R47MG-D |
0.47±20% |
11.7 |
20 |
7.1 |
8.3 |
|
TMPC0602H-R68MG-D |
0.68±20% |
10.5 |
16 |
8.3 |
10 |
|
TMPC0602H-1R0MG-D |
1.00±20% |
8 |
14 |
16.5 |
18 |
|
TMPC0602H-1R5MG-D |
1.50±20% |
7 |
12 |
23 |
27 |
|
TMPC0602H-2R2MG-D |
2.20±20% |
6 |
10 |
32 |
37 |
|
TMPC0602H-3R3MG-D |
3.30±20% |
5 |
8 |
43 |
48 |
|
TMPC0602H-4R7MG-D |
4.70±20% |
4.5 |
7 |
53 |
60 |
|
TMPC0602H-5R6MG-D |
5.60±20% |
4 |
6 |
59 |
68 |
|
TMPC0602H-6R8MG-D |
6.80±20% |
4 |
5.5 |
63 |
73 |
|
TMPC0602H-8R2MG-D |
8.20±20% |
3.2 |
5 |
101 |
116 |
|
TMPC0602H-100MG-D |
10.0±20% |
2.8 |
4 |
134 |
154 |
|
TMPC0602H-220MG-D |
22.0±20% |
1.5 |
2.5 |
236 |
280 |
Package Size:
TMPC0603
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0603H-R22YG-D |
0.22±30% |
23 |
40 |
2.1 |
2.8 |
|
TMPC0603H-R33MG-D |
0.33±20% |
20 |
32 |
3.5 |
3.9 |
|
TMPC0603H-R47MG-D |
0.47±20% |
17.5 |
26 |
4 |
4.2 |
|
TMPC0603H-R56MG-D |
0.56±20% |
16.5 |
25.5 |
4.7 |
5 |
|
TMPC0603H-R68MG-D |
0.68±20% |
15.5 |
25 |
4.8 |
5.5 |
|
TMPC0603H-R75MG-D |
0.75±20% |
14.5 |
24.5 |
5.5 |
6.6 |
|
TMPC0603H-R82MG-D |
0.82±20% |
13 |
24 |
6.7 |
8 |
|
TMPC0603H-1R0MG-D |
1.00±20% |
11 |
22 |
8.3 |
10 |
|
TMPC0603H-1R5MG-D |
1.50±20% |
9 |
18 |
13 |
15 |
|
TMPC0603H-1R8MG-D |
1.80±20% |
8.5 |
16 |
14 |
17 |
|
TMPC0603H-2R2MG-D |
2.20±20% |
8 |
14 |
18 |
20 |
|
TMPC0603H-2R5MG-D |
2.50±20% |
7 |
13 |
20 |
22 |
|
TMPC0603H-3R3MG-D |
3.30±20% |
6 |
13.5 |
28 |
30 |
|
TMPC0603H-4R7MG-D |
4.70±20% |
5.5 |
10 |
37 |
40 |
|
TMPC0603H-5R6MG-D |
5.60±20% |
5 |
9 |
43 |
48 |
|
TMPC0603H-6R8MG-D |
6.80±20% |
4.5 |
8 |
54 |
60 |
|
TMPC0603H-8R2MG-D |
8.20±20% |
4 |
7.5 |
64 |
68 |
|
TMPC0603H-100MG-D |
10.0±20% |
3.5 |
6 |
75 |
85 |
|
TMPC0603H-220MG-D |
22.0±20% |
2 |
3.5 |
165 |
190 |
Package Size:
TMPC0605
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0605H-R47MG-D |
0.47±20% |
22 |
30 |
3.5 |
3.9 |
|
TMPC0605H-R56MG-D |
0.56±20% |
20 |
27 |
3.6 |
4.2 |
|
TMPC0605H-R60MG-D |
0.60±20% |
19 |
25 |
3.8 |
4.3 |
|
TMPC0605H-R68MG-D |
0.68±20% |
18 |
24 |
4 |
4.5 |
|
TMPC0605H-R82MG-D |
0.82±20% |
16.5 |
22 |
4.6 |
4.9 |
|
TMPC0605H-1R0MG-D |
1.00±20% |
15 |
20 |
6.1 |
6.5 |
|
TMPC0605H-1R2MG-D |
1.20±20% |
14 |
18 |
6.7 |
7.5 |
|
TMPC0605H-1R5MG-D |
1.50±20% |
12 |
16.5 |
8.6 |
9 |
|
TMPC0605H-1R8MG-D |
1.80±20% |
12 |
15 |
9.5 |
11 |
|
TMPC0605H-2R2MG-D |
2.20±20% |
10 |
14 |
11.2 |
12 |
|
TMPC0605H-3R3MG-D |
3.30±20% |
8 |
12 |
19 |
20.9 |
|
TMPC0605H-4R7MG-D |
4.70±20% |
6.5 |
10 |
28 |
30.8 |
|
TMPC0605H-5R6MG-D |
5.60±20% |
6 |
9 |
43.5 |
49 |
|
TMPC0605H-6R8MG-D |
6.80±20% |
5.5 |
8.5 |
46 |
51.5 |
|
TMPC0605H-8R2MG-D |
8.20±20% |
5 |
8 |
56 |
63 |
|
TMPC0605H-100MG-D |
10.0±20% |
4 |
7.5 |
60 |
69 |
|
TMPC0605H-220MG-D |
22.0±20% |
2.5 |
5.5 |
140 |
170 |
Eletrical Characteristics
Package Size:
TMPC0612
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0612H-R22YG-D |
0.22±30% |
11 |
19 |
6.5 |
7.5 |
|
TMPC0612H-R33MG-D |
0.33±20% |
9.5 |
16 |
9 |
10 |
|
TMPC0612H-R47MG-D |
0.47±20% |
8.5 |
12 |
13 |
17 |
|
TMPC0612H-R68MG-D |
0.68±20% |
7 |
9 |
17 |
19 |
|
TMPC0612H-1R0MG-D |
1.00±20% |
6 |
7 |
27 |
30 |
|
TMPC0612H-1R2MG-D |
1.20±20% |
5 |
6.8 |
31 |
36 |
|
TMPC0612H-1R5MG-D |
1.50±20% |
4.5 |
6.5 |
35 |
40 |
|
TMPC0612H-2R2MG-D |
2.20±20% |
4 |
5 |
53 |
61 |
|
TMPC0612H-3R3MG-D |
3.30±20% |
3.2 |
4 |
90 |
103 |
|
TMPC0612H-4R7MG-D |
4.70±20% |
2.5 |
3.8 |
130 |
150 |
|
TMPC0612H-6R8MG-D |
6.80±20% |
2.1 |
3 |
172 |
198 |
|
TMPC0612H-100MG-D |
10.0±20% |
1.8 |
2.5 |
280 |
290 |
Package Size:
TMPC0615
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0615H-R22YG-D |
0.22±30% |
14 |
22 |
4.3 |
5.2 |
|
TMPC0615H-R33MG-D |
0.33±20% |
11 |
18 |
6.6 |
7.6 |
|
TMPC0615H-R47MG-D |
0.47±20% |
9.5 |
16 |
9 |
10.3 |
|
TMPC0615H-R68MG-D |
0.68±20% |
7.5 |
15 |
13.8 |
15.2 |
|
TMPC0615H-1R0MG-D |
1.00±20% |
6.5 |
12 |
23 |
25.8 |
|
TMPC0615H-1R2MG-D |
1.20±20% |
5.6 |
10.5 |
29 |
34 |
|
TMPC0615H-1R5MG-D |
1.50±20% |
5 |
9.5 |
37 |
42.5 |
|
TMPC0615H-2R2MG-D |
2.20±20% |
4.5 |
6.5 |
48 |
55 |
|
TMPC0615H-3R3MG-D |
3.30±20% |
4.2 |
6 |
62 |
74 |
|
TMPC0615H-4R7MG-D |
4.70±20% |
3.8 |
5 |
96 |
111 |
|
TMPC0615H-5R6MG-D |
5.60±20% |
3 |
4.5 |
115 |
138 |
|
TMPC0615H-6R8MG-D |
6.80±20% |
2.6 |
3.5 |
128 |
148 |
|
TMPC0615H-8R2MG-D |
8.20±20% |
2.4 |
3.2 |
153 |
184 |
|
TMPC0615H-100MG-D |
10.0±20% |
2.3 |
2.8 |
180 |
216 |
Package Size:
TMPC0618
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0618H-R33MG-D |
0.33±20% |
14 |
22 |
4.8 |
5.8 |
|
TMPC0618H-R47MG-D |
0.47±20% |
12 |
18 |
6.4 |
7.4 |
|
TMPC0618H-R68MG-D |
0.68±20% |
10 |
17 |
9.5 |
11 |
|
TMPC0618H-R82MG-D |
0.82±20% |
8.5 |
15.5 |
11.5 |
14 |
|
TMPC0618H-1R0MG-D |
1.00±20% |
7 |
14 |
14.5 |
17 |
|
TMPC0618H-1R2MG-D |
1.20±20% |
6.5 |
13.5 |
20 |
24 |
|
TMPC0618H-1R5MG-D |
1.50±20% |
6 |
13 |
21 |
25.2 |
|
TMPC0618H-2R2MG-D |
2.20±20% |
6 |
11 |
31 |
35 |
|
TMPC0618H-3R3MG-D |
3.30±20% |
5 |
9 |
40 |
46 |
|
TMPC0618H-4R7MG-D |
4.70±20% |
4 |
7 |
68 |
76 |
|
TMPC0618H-5R6MG-D |
5.60±20% |
3.5 |
6 |
78 |
86 |
|
TMPC0618H-6R8MG-D |
6.80±20% |
3 |
5.5 |
93 |
104 |
|
TMPC0618H-8R2MG-D |
8.20±20% |
2.6 |
4.5 |
123 |
140 |
|
TMPC0618H-100MG-D |
10.0±20% |
2.3 |
3.5 |
143 |
160 |
Package Size:
TMPC0624
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC0624H-R33MG-D |
0.33±20% |
18 |
30 |
3.6 |
4.4 |
|
TMPC0624H-R47MG-D |
0.47±20% |
15 |
26 |
4.8 |
5.1 |
|
TMPC0624H-R56MG-D |
0.56±20% |
13 |
24 |
5.5 |
6.5 |
|
TMPC0624H-R68MG-D |
0.68±20% |
13 |
21 |
6.4 |
7.2 |
|
TMPC0624H-R82MG-D |
0.82±20% |
11 |
17 |
8 |
9.5 |
|
TMPC0624H-1R0MG-D |
1.00±20% |
11 |
16 |
10.5 |
13.5 |
|
TMPC0624H-1R5MG-D |
1.50±20% |
9 |
15 |
17 |
20 |
|
TMPC0624H-2R2MG-D |
2.20±20% |
7 |
14 |
23 |
28 |
|
TMPC0624H-3R3MG-D |
3.30±20% |
6 |
10 |
34 |
39 |
|
TMPC0624H-4R7MG-D |
4.70±20% |
5.5 |
9 |
41 |
50 |
|
TMPC0624H-5R6MG-D |
5.60±20% |
5 |
8 |
56 |
62 |
|
TMPC0624H-6R8MG-D |
6.80±20% |
4 |
7 |
65 |
72 |
|
TMPC0624H-100MG-D |
10.0±20% |
3.2 |
5 |
92 |
101 |
Package Size:
TMPC1004
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC1004H-R22MG-D |
0.22±20% |
35 |
60 |
0.8 |
1 |
|
TMPC1004H-R27MG-D |
0.27±20% |
33 |
60 |
0.82 |
1 |
|
TMPC1004H-R36MG-D |
0.36±20% |
31 |
60 |
1.05 |
1.2 |
|
TMPC1004H-R39MG-D |
0.39±20% |
30 |
60 |
1.1 |
1.3 |
|
TMPC1004H-R45MG-D |
0.45±20% |
29 |
45 |
1.3 |
1.5 |
|
TMPC1004H-R56MG-D |
0.56±20% |
25 |
40 |
1.6 |
1.8 |
|
TMPC1004H-1R0MG-D |
1.00±20% |
18 |
36 |
3 |
3.3 |
|
TMPC1004H-1R5MG-D |
1.50±20% |
16 |
33 |
4 |
4.6 |
|
TMPC1004H-2R2MG-D |
2.20±20% |
12 |
27 |
6.5 |
7 |
|
TMPC1004H-3R3MG-D |
3.30±20% |
11 |
20 |
10.8 |
11.8 |
|
TMPC1004H-4R7MG-D |
4.70±20% |
10 |
17 |
15 |
15.5 |
|
TMPC1004H-6R8MG-D |
6.80±20% |
8.5 |
13.5 |
17.5 |
23.3 |
|
TMPC1004H-8R2MG-D |
8.20±20% |
8 |
12.5 |
20 |
22.5 |
|
TMPC1004H-100MG-D |
10.0±20% |
7.5 |
12 |
27 |
30 |
|
TMPC1004H-150MG-D |
15.0±20% |
6.25 |
10 |
40 |
45 |
|
TMPC1004H-330MG-D |
33.0±20% |
3.5 |
5 |
92 |
112 |
Package Size:
TMPC1206
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC1206HP-6R8MG-D |
6.80±20% |
15 |
19 |
12 |
13.8 |
|
TMPC1206HP-100MG-D |
10.0±20% |
11 |
15.5 |
18 |
20.7 |
|
TMPC1206HP-120MG-D |
12.0±20% |
9.5 |
13.5 |
20 |
23 |
|
TMPC1206HP-150MG-D |
15.0±20% |
9 |
13 |
25 |
29 |
|
TMPC1206HP-180MG-D |
18.0±20% |
8.5 |
12 |
30 |
35 |
|
TMPC1206HP-220MG-D |
22.0±20% |
8 |
11 |
34 |
39.5 |
|
TMPC1206HP-270MG-D |
27.0±20% |
7 |
9 |
49 |
56 |
|
TMPC1206HP-330MG-D |
33.0±20% |
6 |
8 |
65 |
75 |
|
TMPC1206HP-470MG-D |
47.0±20% |
5.5 |
7 |
80 |
90 |
|
TMPC1206HP-680MG-D |
68.0±20% |
5 |
6 |
120 |
140 |
|
TMPC1206HP-101MG-D |
100±20% |
4 |
5 |
180 |
200 |
|
TMPC1206HP-121MG-D |
120±20% |
3.5 |
4.5 |
210 |
235 |
|
TMPC1206HP-151MG-D |
150±20% |
3 |
4 |
300 |
350 |
Package Size:
TMPC1265
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC1265HP-R15MG-D |
0.15±20% |
55 |
118 |
0.49 |
0.6 |
|
TMPC1265HP-R22MG-D |
0.22±20% |
53 |
112 |
0.47 |
0.6 |
|
TMPC1265HP-R30MG-D |
0.30±20% |
48 |
72 |
0.6 |
0.72 |
|
TMPC1265HP-R33MG-D |
0.33±20% |
46 |
68 |
0.65 |
0.8 |
|
TMPC1265HP-R36MG-D |
0.36±20% |
45 |
66 |
0.7 |
0.9 |
|
TMPC1265HP-R40MG-D |
0.40±20% |
44 |
64 |
0.7 |
1 |
|
TMPC1265HP-R47MG-D |
0.47±20% |
41 |
63 |
0.9 |
1.2 |
|
TMPC1265HP-R50MG-D |
0.50±20% |
40 |
60 |
0.92 |
1.25 |
|
TMPC1265HP-R56MG-D |
0.56±20% |
37 |
58 |
1.05 |
1.2 |
|
TMPC1265HP-R68MG-D |
0.68±20% |
35 |
55 |
1.25 |
1.5 |
|
TMPC1265HP-R82MG-D |
0.82±20% |
33 |
50 |
1.5 |
1.9 |
|
TMPC1265HP-1R0MG-D |
1.00±20% |
30 |
48 |
1.7 |
2.3 |
|
TMPC1265HP-1R5MG-D |
1.50±20% |
27 |
45 |
2.5 |
3 |
|
TMPC1265HP-2R2MG-D |
2.20±20% |
22 |
37 |
3.8 |
4.2 |
|
TMPC1265HP-3R3MG-D |
3.30±20% |
18 |
30 |
5.7 |
6.8 |
|
TMPC1265HP-4R7MG-D |
4.70±20% |
13.5 |
28 |
7 |
8.4 |
|
TMPC1265HP-5R6MG-D |
5.60±20% |
12.5 |
23 |
8.5 |
10 |
|
TMPC1265HP-6R8MG-D |
6.80±20% |
11.5 |
18 |
9.5 |
11.5 |
|
TMPC1265HP-8R2MG-D |
8.20±20% |
10.5 |
16 |
12 |
15.5 |
|
TMPC1265HP-130MG-D |
13.0±20% |
9 |
13 |
21 |
24 |
|
TMPC1265HP-150MG-D |
15.0±20% |
9 |
12.5 |
23.2 |
28 |
|
TMPC1265HP-220MG-D |
22.0±20% |
9 |
12 |
32.5 |
37 |
|
TMPC1265HP-470MG-D |
47.0±20% |
6.5 |
9.5 |
76 |
90 |
Package Size:
TMPC1707
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC1707HP-2R2MG-D |
2.20±20% |
43.5 |
47 |
2.4 |
2.7 |
|
TMPC1707HP-3R3MG-D |
3.30±20% |
28 |
45 |
3.5 |
3.9 |
|
TMPC1707HP-4R7MG-D |
4.70±20% |
25 |
41 |
4.8 |
5.5 |
|
TMPC1707HP-5R6MG-D |
5.60±20% |
21 |
40 |
5.8 |
7.05 |
|
TMPC1707HP-6R8MG-D |
6.80±20% |
19 |
32 |
8.4 |
9.2 |
|
TMPC1707HP-8R2MG-D |
8.20±20% |
18 |
25 |
9.6 |
10.8 |
|
TMPC1707HP-100MG-D |
10.0±20% |
16.5 |
24 |
11.8 |
13 |
|
TMPC1707HP-150MG-D |
15.0±20% |
12.5 |
23 |
17.8 |
20.5 |
|
TMPC1707HP-220MG-D |
22.0±20% |
12 |
18 |
25.1 |
26.5 |
|
TMPC1707HP-330MG-D |
33.0±20% |
10.7 |
15 |
38 |
44 |
|
TMPC1707HP-470MG-D |
47.0±20% |
8.7 |
9.5 |
48 |
55 |
|
TMPC1707HP-101MG-D |
100±20% |
5.3 |
6.5 |
102 |
118 |
Package Size:
TMPC505015
|
Part Number |
Inductance (uH) |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) typ. |
DCR (mΩ) max. |
|
TMPC505015H-1R0MG-D |
1.00±20% |
5 |
5.5 |
24 |
27.6 |
|
TMPC505015H-2R2MG-D |
2.20±20% |
4 |
5 |
52 |
60 |
|
TMPC505015H-3R3MG-D |
3.30±20% |
3.6 |
4.5 |
81 |
92 |
|
TMPC505015H-4R7MG-D |
4.70±20% |
3.1 |
4 |
115 |
133 |
|
TMPC505015H-6R8MG-D |
6.80±20% |
2.3 |
3 |
170 |
196 |
|
( 3696 reviews ) Views:3675
