DPI Series
Home » Products » Dip Type Ultra High Current Power Inductors
Product name :
DPI Series
( 2209 reviews ) Views:2188
Color :
Size:
Material:
Product Description
1.Lowest height in this package footprint.
2.Shielded construction.
3.Lowest DCR/μH, in this package size.
4.Handles high transient current spikes without saturation.
5.Ultra low buzz noise, due to composite construction.
6.100% Lead(Pb) & Halogen-Free and RoHS compliant.
Part Numbering
|
|
A: |
Series |
|
|
B: |
Dimension |
|
|
C: |
Material |
|
|
D: |
Inductance (R50=0.50uH ) |
|
|
E: |
Inductance Tolerance (M=±20% ) |
|
|
F: |
Control S/N |

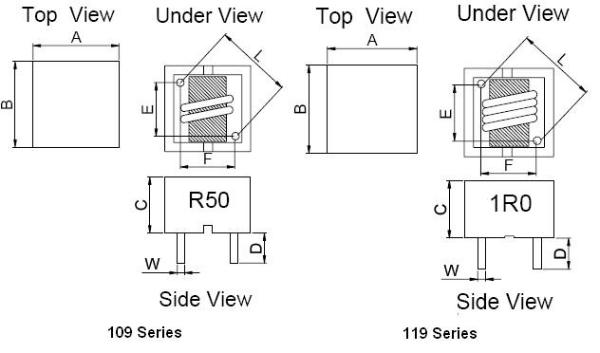

Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
L(mm) |
W(mm) |
|
109 |
11.0 max. |
11.0 max. |
10.0 max. |
3.4±0.5 |
4.5±0.5 |
6.0±0.5 |
7.5±0.5 |
1.3±0.1 |
|
119 |
11.5 max. |
11.5 max. |
10.0 max. |
3.5±0.5 |
6.3±0.5 |
6.4±0.5 |
9.0±0.5 |
1.3±0.1 |
Eletrical Characteristics
Package Size:
DPI109M
|
Part Number |
Inductance (uH)±20% |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) |
|
DPI109M-R50M-Z01 |
0.5 |
40 |
40 |
0.78±10% |
Package Size:
DPI109M
|
Part Number |
Inductance (uH)±20% |
I rms (A) typ. |
I sat (A) typ. |
DCR (mΩ) |
|
DPI109M-R50M-Z01 |
0.5 |
40 |
40 |
0.78±10% |
