TPRHC Series
Home » Products » Dip Type Ultra High Current Power Inductors
Product name :
TPRHC Series
( 2507 reviews ) Views:2486
Color :
Size:
Material:
Product Description
1.Magnetic Shielded surface mount inductor with high current rating.
2.Low resistance to keep power loss minimum.
3.This component is compliant with RoHS legislation and also support lead-free soldering.

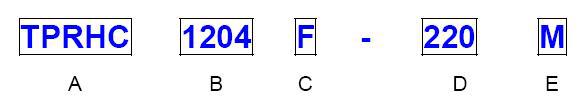

Part Numbering
|
|
A: |
Series |
|
|
B: |
Dimension |
|
|
C: |
Lead free type |
|
|
D: |
Inductance (220=22.0uH ) |
|
|
E: |
Inductance Tolerance ("M=±20% ,Y=±30%" ) |
Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
|
1204 |
12.8 max. |
12.8 max. |
5.0 max. |
5.0 ref. |
2.2 ref. |
7.6 ref. |
|
1205 |
12.8 max. |
12.8 max. |
6.0 max. |
5.0 ref. |
2.2 ref. |
7.6 ref. |
|
1207 |
12.8 max. |
12.8 max. |
8.5 max. |
5.0 ref. |
2.2 ref. |
7.6 ref. |
Eletrical Characteristics
Package Size:
TPRHC1204
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
TPRHC 1204F-3R9Y |
3.9 |
± 30% |
1V/100K |
0.015 |
6.5 |
|
TPRHC 1204F-4R7Y |
4.7 |
± 30% |
1V/100K |
0.018 |
5.7 |
|
TPRHC 1204F-6R8Y |
6.8 |
± 30% |
1V/100K |
0.023 |
4.9 |
|
TPRHC 1204F-8R2Y |
8.2 |
± 30% |
1V/100K |
0.026 |
4.6 |
|
TPRHC 1204F-100M |
10 |
± 20% |
1V/100K |
0.028 |
4.5 |
|
TPRHC 1204F-120M |
12 |
± 20% |
1V/100K |
0.038 |
4 |
|
TPRHC 1204F-150M |
15 |
± 20% |
1V/100K |
0.052 |
3.2 |
|
TPRHC 1204F-180M |
18 |
± 20% |
1V/100K |
0.06 |
3.1 |
|
TPRHC 1204F-220M |
22 |
± 20% |
1V/100K |
0.07 |
2.9 |
|
TPRHC 1204F-270M |
27 |
± 20% |
1V/100K |
0.08 |
2.8 |
|
TPRHC 1204F-330M |
33 |
± 20% |
1V/100K |
0.097 |
2.7 |
|
TPRHC 1204F-390M |
39 |
± 20% |
1V/100K |
0.132 |
2.1 |
|
TPRHC 1204F-470M |
47 |
± 20% |
1V/100K |
0.16 |
1.9 |
|
TPRHC 1204F-560M |
56 |
± 20% |
1V/100K |
0.19 |
1.8 |
|
TPRHC 1204F-680M |
68 |
± 20% |
1V/100K |
0.22 |
1.5 |
|
TPRHC 1204F-820M |
82 |
± 20% |
1V/100K |
0.26 |
1.3 |
|
TPRHC 1204F-101M |
100 |
± 20% |
1V/100K |
0.308 |
1.2 |
|
TPRHC 1204F-121M |
120 |
± 20% |
1V/100K |
0.38 |
1.1 |
|
TPRHC 1204F-151M |
150 |
± 20% |
1V/100K |
0.53 |
0.95 |
|
TPRHC 1204F-181M |
180 |
± 20% |
1V/100K |
0.62 |
0.85 |
|
TPRHC 1204F-221M |
220 |
± 20% |
1V/100K |
0.7 |
0.8 |
|
TPRHC 1204F-271M |
270 |
± 20% |
1V/100K |
0.87 |
0.6 |
|
TPRHC 1204F-331M |
330 |
± 20% |
1V/100K |
0.99 |
0.5 |
|
Package Size: TPRHC1205
|
|||||
|
|
|
|
|
|
|
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
TPRHC 1205F-1R3Y |
1.3 |
± 30% |
1V/100K |
0.012 |
8 |
|
TPRHC 1205F-2R1Y |
2.1 |
± 30% |
1V/100K |
0.014 |
7 |
|
TPRHC 1205F-3R1Y |
3.1 |
± 30% |
1V/100K |
0.017 |
6 |
|
TPRHC 1205F-4R4Y |
4.4 |
± 30% |
1V/100K |
0.02 |
5 |
|
TPRHC 1205F-5R8Y |
5.8 |
± 30% |
1V/100K |
0.021 |
4.4 |
|
TPRHC 1205F-7R5Y |
7.5 |
± 30% |
1V/100K |
0.024 |
4.2 |
|
TPRHC 1205F-100M |
10 |
± 20% |
1V/1K |
0.025 |
4 |
|
TPRHC 1205F-120M |
12 |
± 20% |
1V/1K |
0.027 |
3.5 |
|
TPRHC 1205F-150M |
15 |
± 20% |
1V/1K |
0.03 |
3.3 |
|
TPRHC 1205F-180M |
18 |
± 20% |
1V/1K |
0.034 |
3 |
|
TPRHC 1205F-220M |
22 |
± 20% |
1V/1K |
0.036 |
2.8 |
|
TPRHC 1205F-270M |
27 |
± 20% |
1V/1K |
0.051 |
2.3 |
|
TPRHC 1205F-330M |
33 |
± 20% |
1V/1K |
0.057 |
2.1 |
|
TPRHC 1205F-390M |
39 |
± 20% |
1V/1K |
0.068 |
2 |
|
TPRHC 1205F-470M |
47 |
± 20% |
1V/1K |
0.075 |
1.8 |
|
TPRHC 1205F-560M |
56 |
± 20% |
1V/1K |
0.11 |
1.7 |
|
TPRHC 1205F-680M |
68 |
± 20% |
1V/1K |
0.12 |
1.5 |
|
TPRHC 1205F-820M |
82 |
± 20% |
1V/1K |
0.14 |
1.4 |
|
TPRHC 1205F-101M |
100 |
± 20% |
1V/1K |
0.16 |
1.3 |
|
TPRHC 1205F-121M |
120 |
± 20% |
1V/1K |
0.17 |
1.1 |
|
TPRHC 1205F-220M |
22 |
± 20% |
1V/1K |
0.036 |
2.8 |
|
TPRHC 1205F-270M |
27 |
± 20% |
1V/1K |
0.051 |
2.3 |
|
TPRHC 1205F-330M |
33 |
± 20% |
1V/1K |
0.057 |
2.1 |
|
TPRHC 1205F-390M |
39 |
± 20% |
1V/1K |
0.068 |
2 |
|
TPRHC 1205F-470M |
47 |
± 20% |
1V/1K |
0.075 |
1.8 |
|
TPRHC 1205F-560M |
56 |
± 20% |
1V/1K |
0.11 |
1.7 |
|
TPRHC 1205F-680M |
68 |
± 20% |
1V/1K |
0.12 |
1.5 |
|
TPRHC 1205F-820M |
82 |
± 20% |
1V/1K |
0.14 |
1.4 |
|
TPRHC 1205F-101M |
100 |
± 20% |
1V/1K |
0.16 |
1.3 |
|
TPRHC 1205F-121M |
120 |
± 20% |
1V/1K |
0.17 |
1.1 |
|
TPRHC 1205F-151M |
150 |
± 20% |
1V/1K |
0.23 |
1 |
|
TPRHC 1205F-181M |
180 |
± 20% |
1V/1K |
0.29 |
0.9 |
|
TPRHC 1205F-221M |
220 |
± 20% |
1V/1K |
0.4 |
0.8 |
|
TPRHC 1205F-271M |
270 |
± 20% |
1V/1K |
0.46 |
0.75 |
|
TPRHC 1205F-331M |
330 |
± 20% |
1V/1K |
0.51 |
0.68 |
|
TPRHC 1205F-391M |
390 |
± 20% |
1V/1K |
0.69 |
0.65 |
|
TPRHC 1205F-471M |
470 |
± 20% |
1V/1K |
0.77 |
0.58 |
|
TPRHC 1205F-561M |
560 |
± 20% |
1V/1K |
0.86 |
0.54 |
|
TPRHC 1205F-681M |
680 |
± 20% |
1V/1K |
1.2 |
0.48 |
|
TPRHC 1205F-821M |
820 |
± 20% |
1V/1K |
1.34 |
0.43 |
|
TPRHC 1205F-102M |
1000 |
± 20% |
1V/1K |
1.53 |
0.4 |
|
|
|
|
|
|
|
Package Size:
TPRHC1207
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
TPRHC 1207F-1R2Y |
1.2 |
± 30% |
1V/100K |
0.007 |
9.8 |
|
TPRHC 1207F-2R4Y |
2.4 |
± 30% |
1V/100K |
0.0115 |
8 |
|
TPRHC 1207F-3R5Y |
3.5 |
± 30% |
1V/100K |
0.0135 |
7.5 |
|
TPRHC 1207F-4R7Y |
4.7 |
± 30% |
1V/100K |
0.0158 |
6.8 |
|
TPRHC 1207F-6R1Y |
6.1 |
± 30% |
1V/100K |
0.0176 |
6.6 |
|
TPRHC 1207F-7R6Y |
7.6 |
± 30% |
1V/100K |
0.02 |
5.9 |
|
TPRHC 1207F-100M |
10 |
± 20% |
1V/1K |
0.0216 |
5.4 |
|
TPRHC 1207F-120M |
12 |
± 20% |
1V/1K |
0.0243 |
4.9 |
|
TPRHC 1207F-150M |
15 |
± 20% |
1V/1K |
0.027 |
4.5 |
|
TPRHC 1207F-180M |
18 |
± 20% |
1V/1K |
0.0392 |
3.9 |
|
TPRHC 1207F-1R2Y |
1.2 |
± 30% |
1V/100K |
0.007 |
9.8 |
|
TPRHC 1207F-2R4Y |
2.4 |
± 30% |
1V/100K |
0.0115 |
8 |
|
TPRHC 1207F-3R5Y |
3.5 |
± 30% |
1V/100K |
0.0135 |
7.5 |
|
TPRHC 1207F-4R7Y |
4.7 |
± 30% |
1V/100K |
0.0158 |
6.8 |
|
TPRHC 1207F-6R1Y |
6.1 |
± 30% |
1V/100K |
0.0176 |
6.6 |
|
TPRHC 1207F-7R6Y |
7.6 |
± 30% |
1V/100K |
0.02 |
5.9 |
|
TPRHC 1207F-100M |
10 |
± 20% |
1V/1K |
0.0216 |
5.4 |
|
TPRHC 1207F-120M |
12 |
± 20% |
1V/1K |
0.0243 |
4.9 |
|
TPRHC 1207F-150M |
15 |
± 20% |
1V/1K |
0.027 |
4.5 |
|
TPRHC 1207F-180M |
18 |
± 20% |
1V/1K |
0.0392 |
3.9 |
|
TPRHC 1207F-151M |
150 |
± 20% |
1V/1K |
0.28 |
1.42 |
|
TPRHC 1207F-181M |
180 |
± 20% |
1V/1K |
0.35 |
1.3 |
|
TPRHC 1207F-221M |
220 |
± 20% |
1V/1K |
0.39 |
1.16 |
|
TPRHC 1207F-271M |
270 |
± 20% |
1V/1K |
0.56 |
1.06 |
|
TPRHC 1207F-331M |
330 |
± 20% |
1V/1K |
0.64 |
0.95 |
|
TPRHC 1207F-391M |
390 |
± 20% |
1V/1K |
0.7 |
0.88 |
|
TPRHC 1207F-471M |
470 |
± 20% |
1V/1K |
0.98 |
0.79 |
|
TPRHC 1207F-561M |
560 |
± 20% |
1V/1K |
1.07 |
0.73 |
|
TPRHC 1207F-681M |
680 |
± 20% |
1V/1K |
1.46 |
0.67 |
|
TPRHC 1207F-821M |
820 |
± 20% |
1V/1K |
1.64 |
0.6 |
|
TPRHC 1207F-102M |
1000 |
± 20% |
1V/1K |
1.82 |
0.55 |
