PFI Series
Home » Products » Dip Type Ultra High Current Power Inductors
Product name :
PFI Series
( 3130 reviews ) Views:3109
Color :
Size:
Material:
Product Description
1.Excellent solderability and high heat resistance.
2.Excellent terminal strength construction.
3.Packed in embossed carrier tape and can be used by automatic mounting machine.
4.100% Lead(Pb) & Halogen-Free and RoHS compliant.

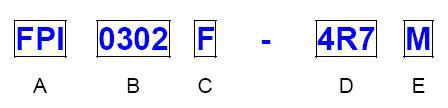

Part Numbering
|
|
A: |
Series |
|
|
B: |
Dimension |
|
|
C: |
Lead free type |
|
|
D: |
Inductance ("4R7=4.7uH,470=47uH,471=470uH" ) |
|
|
E: |
Inductance Tolerance (M=±20% ) |

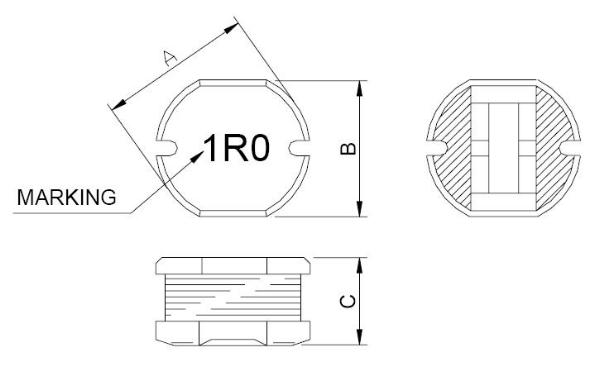

Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
|
0302 |
3.50±0.3 |
3.00±0.3 |
2.10±0.3 |
|
0403 |
4.50±0.3 |
4.00±0.3 |
3.20±0.3 |
|
0502 |
5.80±0.3 |
5.20±0.3 |
2.00±0.3 |
|
0504 |
5.80±0.3 |
5.20±0.3 |
4.50±0.3 |
|
0703 |
7.80±0.3 |
7.00±0.3 |
3.50±0.3 |
|
0705 |
7.80±0.3 |
7.00±0.3 |
5.00±0.3 |
|
1004 |
10.0±0.3 |
9.00±0.3 |
4.00±0.3 |
|
1005 |
10.0±0.3 |
9.00±0.3 |
5.40±0.3 |
Eletrical Characteristics
Package Size:
FPI0302
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0302F-1R0M |
1 |
± 20% |
1V/7.96M |
0.04 |
1.5 |
|
FPI 0302F-1R4M |
1.4 |
± 20% |
1V/7.96M |
0.05 |
1.5 |
|
FPI 0302F-1R8M |
1.8 |
± 20% |
1V/7.96M |
0.06 |
0.8 |
|
FPI 0302F-2R2M |
2.2 |
± 20% |
1V/7.96M |
0.08 |
0.75 |
|
FPI 0302F-2R7M |
2.7 |
± 20% |
1V/7.96M |
0.1 |
0.75 |
|
FPI 0302F-3R3M |
3.3 |
± 20% |
1V/7.96M |
0.15 |
0.6 |
|
FPI 0302F-3R9M |
3.9 |
± 20% |
1V/7.96M |
0.2 |
0.5 |
|
FPI 0302F-4R7M |
4.7 |
± 20% |
1V/7.96M |
0.2 |
0.5 |
|
FPI 0302F-5R6M |
5.6 |
± 20% |
1V/7.96M |
0.23 |
0.45 |
|
FPI 0302F-6R8M |
6.8 |
± 20% |
1V/7.96M |
0.25 |
0.4 |
|
FPI 0302F-8R2M |
8.2 |
± 20% |
1V/7.96M |
0.3 |
0.4 |
|
FPI 0302F-100M |
10 |
± 20% |
1V/2.52M |
0.35 |
0.35 |
|
FPI 0302F-120M |
12 |
± 20% |
1V/2.52M |
0.4 |
0.35 |
|
FPI 0302F-150M |
15 |
± 20% |
1V/2.52M |
0.5 |
0.3 |
|
FPI 0302F-180M |
18 |
± 20% |
1V/2.52M |
0.55 |
0.3 |
|
FPI 0302F-220M |
22 |
± 20% |
1V/2.52M |
0.6 |
0.3 |
|
FPI 0302F-270M |
27 |
± 20% |
1V/2.52M |
0.7 |
0.3 |
|
FPI 0302F-330M |
33 |
± 20% |
1V/2.52M |
1 |
0.25 |
|
FPI 0302F-390M |
39 |
± 20% |
1V/2.52M |
1.2 |
0.25 |
|
FPI 0302F-470M |
47 |
± 20% |
1V/2.52M |
1.5 |
0.2 |
|
FPI 0302F-560M |
56 |
± 20% |
1V/2.52M |
1.8 |
0.2 |
|
FPI 0302F-680M |
68 |
± 20% |
1V/2.52M |
2 |
0.18 |
|
FPI 0302F-820M |
82 |
± 20% |
1V/2.52M |
2.5 |
0.16 |
|
FPI 0302F-101M |
100 |
± 20% |
1V/1K |
3 |
0.15 |
|
FPI 0302F-121M |
120 |
± 20% |
1V/1K |
3.5 |
0.14 |
|
FPI 0302F-151M |
150 |
± 20% |
1V/1K |
4 |
0.13 |
|
FPI 0302F-181M |
180 |
± 20% |
1V/1K |
5 |
0.12 |
|
FPI 0302F-221M |
220 |
± 20% |
1V/1K |
5.5 |
0.1 |
|
FPI 0302F-271M |
270 |
± 20% |
1V/1K |
6 |
0.1 |
|
FPI 0302F-331M |
330 |
± 20% |
1V/1K |
7 |
0.1 |
|
FPI 0302F-391M |
390 |
± 20% |
1V/1K |
8 |
0.1 |
|
FPI 0302F-471M |
470 |
± 20% |
1V/1K |
12 |
0.09 |
Package Size:
FPI0403
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0403F-1R0M |
1 |
± 20% |
1V/7.96M |
0.03 |
4 |
|
FPI 0403F-1R4M |
1.4 |
± 20% |
1V/7.96M |
0.04 |
3.5 |
|
FPI 0403F-1R8M |
1.8 |
± 20% |
1V/7.96M |
0.05 |
3 |
|
FPI 0403F-2R2M |
2.2 |
± 20% |
1V/7.96M |
0.06 |
2.6 |
|
FPI 0403F-2R7M |
2.7 |
± 20% |
1V/7.96M |
0.06 |
2.2 |
|
FPI 0403F-3R3M |
3.3 |
± 20% |
1V/7.96M |
0.07 |
2 |
|
FPI 0403F-3R9M |
3.9 |
± 20% |
1V/7.96M |
0.07 |
2 |
|
FPI 0403F-4R7M |
4.7 |
± 20% |
1V/7.96M |
0.08 |
1.9 |
|
FPI 0403F-5R6M |
5.6 |
± 20% |
1V/7.96M |
0.12 |
1.8 |
|
FPI 0403F-6R8M |
6.8 |
± 20% |
1V/7.96M |
0.14 |
1.6 |
|
FPI 0403F-8R2M |
8.2 |
± 20% |
1V/7.96M |
0.15 |
1.4 |
|
FPI 0403F-100M |
10 |
± 20% |
1V/2.52M |
0.19 |
1.1 |
|
FPI 0403F-120M |
12 |
± 20% |
1V/2.52M |
0.21 |
1.1 |
|
FPI 0403F-150M |
15 |
± 20% |
1V/2.52M |
0.25 |
1 |
|
FPI 0403F-180M |
18 |
± 20% |
1V/2.52M |
0.3 |
1 |
|
FPI 0403F-220M |
22 |
± 20% |
1V/2.52M |
0.35 |
1 |
|
FPI 0403F-270M |
27 |
± 20% |
1V/2.52M |
0.45 |
0.75 |
|
FPI 0403F-330M |
33 |
± 20% |
1V/2.52M |
0.6 |
0.7 |
|
FPI 0403F-390M |
39 |
± 20% |
1V/2.52M |
0.7 |
0.65 |
|
FPI 0403F-470M |
47 |
± 20% |
1V/2.52M |
0.8 |
0.6 |
|
FPI 0403F-560M |
56 |
± 20% |
1V/2.52M |
0.85 |
0.55 |
|
FPI 0403F-680M |
68 |
± 20% |
1V/2.52M |
1 |
0.5 |
|
FPI 0403F-820M |
82 |
± 20% |
1V/2.52M |
1.1 |
0.46 |
|
FPI 0403F-101M |
100 |
± 20% |
1V/1K |
1.2 |
0.22 |
|
FPI 0403F-121M |
120 |
± 20% |
1V/1K |
1.6 |
0.2 |
|
FPI 0403F-151M |
150 |
± 20% |
1V/1K |
2 |
0.2 |
|
FPI 0403F-181M |
180 |
± 20% |
1V/1K |
3 |
0.2 |
|
FPI 0403F-221M |
220 |
± 20% |
1V/1K |
3 |
0.2 |
|
FPI 0403F-271M |
270 |
± 20% |
1V/1K |
4 |
0.16 |
|
FPI 0403F-331M |
330 |
± 20% |
1V/1K |
4 |
0.14 |
|
FPI 0403F-391M |
390 |
± 20% |
1V/1K |
5 |
0.12 |
|
FPI 0403F-471M |
470 |
± 20% |
1V/1K |
6 |
0.12 |
|
FPI 0403F-561M |
560 |
± 20% |
1V/1K |
7 |
0.1 |
Package Size:
FPI0502
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0502F-1R0M |
1 |
± 20% |
1V/7.96M |
0.03 |
1.5 |
|
FPI 0502F-1R4M |
1.4 |
± 20% |
1V/7.96M |
0.04 |
1.5 |
|
FPI 0502F-1R8M |
1.8 |
± 20% |
1V/7.96M |
0.05 |
1.5 |
|
FPI 0502F-2R2M |
2.2 |
± 20% |
1V/7.96M |
0.06 |
1.5 |
|
FPI 0502F-2R7M |
2.7 |
± 20% |
1V/7.96M |
0.07 |
1.5 |
|
FPI 0502F-3R3M |
3.3 |
± 20% |
1V/7.96M |
0.08 |
1.5 |
|
FPI 0502F-3R9M |
3.9 |
± 20% |
1V/7.96M |
0.09 |
1 |
|
FPI 0502F-4R7M |
4.7 |
± 20% |
1V/7.96M |
0.1 |
1 |
|
FPI 0502F-5R6M |
5.6 |
± 20% |
1V/7.96M |
0.11 |
1 |
|
FPI 0502F-6R8M |
6.8 |
± 20% |
1V/7.96M |
0.14 |
0.7 |
|
FPI 0502F-8R2M |
8.2 |
± 20% |
1V/7.96M |
0.15 |
0.65 |
|
FPI 0502F-100M |
10 |
± 20% |
1V/2.52M |
0.3 |
0.6 |
|
FPI 0502F-120M |
12 |
± 20% |
1V/2.52M |
0.35 |
0.6 |
|
FPI 0502F-150M |
15 |
± 20% |
1V/2.52M |
0.4 |
0.55 |
|
FPI 0502F-180M |
18 |
± 20% |
1V/2.52M |
0.45 |
0.5 |
|
FPI 0502F-220M |
22 |
± 20% |
1V/2.52M |
0.5 |
0.5 |
|
FPI 0502F-270M |
27 |
± 20% |
1V/2.52M |
0.55 |
0.45 |
|
FPI 0502F-330M |
33 |
± 20% |
1V/2.52M |
0.6 |
0.4 |
|
FPI 0502F-390M |
39 |
± 20% |
1V/2.52M |
0.7 |
0.35 |
|
FPI 0502F-470M |
47 |
± 20% |
1V/2.52M |
0.8 |
0.3 |
|
FPI 0502F-560M |
56 |
± 20% |
1V/2.52M |
0.9 |
0.25 |
|
FPI 0502F-680M |
68 |
± 20% |
1V/2.52M |
1.2 |
0.25 |
|
FPI 0502F-820M |
82 |
± 20% |
1V/2.52M |
1.5 |
0.22 |
|
FPI 0502F-101M |
100 |
± 20% |
1V/1K |
2 |
0.21 |
|
FPI 0502F-121M |
120 |
± 20% |
1V/1K |
3 |
0.2 |
|
FPI 0502F-151M |
150 |
± 20% |
1V/1K |
4 |
0.18 |
|
FPI 0502F-181M |
180 |
± 20% |
1V/1K |
4 |
0.15 |
|
FPI 0502F-221M |
220 |
± 20% |
1V/1K |
4.5 |
0.15 |
|
FPI 0502F-271M |
270 |
± 20% |
1V/1K |
5 |
0.15 |
|
FPI 0502F-331M |
330 |
± 20% |
1V/1K |
6 |
0.14 |
|
FPI 0502F-391M |
390 |
± 20% |
1V/1K |
6.5 |
0.14 |
|
FPI 0502F-471M |
470 |
± 20% |
1V/1K |
7 |
0.12 |
|
FPI 0502F-561M |
560 |
± 20% |
1V/1K |
8 |
0.12 |
Package Size:
FPI0504
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0504F-1R0M |
1 |
± 20% |
1V/7.96M |
0.018 |
3.5 |
|
FPI 0504F-1R4M |
1.4 |
± 20% |
1V/7.96M |
0.02 |
3.5 |
|
FPI 0504F-1R8M |
1.8 |
± 20% |
1V/7.96M |
0.025 |
3 |
|
FPI 0504F-2R2M |
2.2 |
± 20% |
1V/7.96M |
0.03 |
2.8 |
|
FPI 0504F-2R7M |
2.7 |
± 20% |
1V/7.96M |
0.035 |
2.6 |
|
FPI 0504F-3R3M |
3.3 |
± 20% |
1V/7.96M |
0.04 |
2.5 |
|
FPI 0504F-3R9M |
3.9 |
± 20% |
1V/7.96M |
0.05 |
2.3 |
|
FPI 0504F-4R7M |
4.7 |
± 20% |
1V/7.96M |
0.06 |
2.6 |
|
FPI 0504F-5R6M |
5.6 |
± 20% |
1V/7.96M |
0.07 |
2.4 |
|
FPI 0504F-6R8M |
6.8 |
± 20% |
1V/7.96M |
0.08 |
2.2 |
|
FPI 0504F-8R2M |
8.2 |
± 20% |
1V/7.96M |
0.08 |
2 |
|
FPI 0504F-100M |
10 |
± 20% |
1V/2.52M |
0.09 |
1.8 |
|
FPI 0504F-120M |
12 |
± 20% |
1V/2.52M |
0.1 |
1.6 |
|
FPI 0504F-150M |
15 |
± 20% |
1V/2.52M |
0.12 |
1.5 |
|
FPI 0504F-180M |
18 |
± 20% |
1V/2.52M |
0.15 |
1.4 |
|
FPI 0504F-220M |
22 |
± 20% |
1V/2.52M |
0.18 |
1.3 |
|
FPI 0504F-270M |
27 |
± 20% |
1V/2.52M |
0.22 |
1.2 |
|
FPI 0504F-330M |
33 |
± 20% |
1V/2.52M |
0.26 |
1 |
|
FPI 0504F-390M |
39 |
± 20% |
1V/2.52M |
0.3 |
0.9 |
|
FPI 0504F-470M |
47 |
± 20% |
1V/2.52M |
0.35 |
0.85 |
|
FPI 0504F-560M |
56 |
± 20% |
1V/2.52M |
0.4 |
0.8 |
|
FPI 0504F-680M |
68 |
± 20% |
1V/2.52M |
0.45 |
0.7 |
|
FPI 0504F-820M |
82 |
± 20% |
1V/2.52M |
0.5 |
0.7 |
|
FPI 0504F-101M |
100 |
± 20% |
1V/1K |
0.7 |
0.6 |
|
FPI 0504F-121M |
120 |
± 20% |
1V/1K |
0.75 |
0.6 |
|
FPI 0504F-151M |
150 |
± 20% |
1V/1K |
0.9 |
0.55 |
|
FPI 0504F-181M |
180 |
± 20% |
1V/1K |
1.1 |
0.5 |
|
FPI 0504F-221M |
220 |
± 20% |
1V/1K |
1.2 |
0.4 |
|
FPI 0504F-271M |
270 |
± 20% |
1V/1K |
1.5 |
0.25 |
|
FPI 0504F-331M |
330 |
± 20% |
1V/1K |
3 |
0.22 |
|
FPI 0504F-391M |
390 |
± 20% |
1V/1K |
3.5 |
0.2 |
|
FPI 0504F-471M |
470 |
± 20% |
1V/1K |
4 |
0.19 |
|
FPI 0504F-561M |
560 |
± 20% |
1V/1K |
4 |
0.18 |
|
FPI 0504F-681M |
680 |
± 20% |
1V/1K |
4.5 |
0.15 |
Package Size:
FPI0703
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0703F-100M |
10 |
± 20% |
1V/2.52M |
0.0803 |
1.44 |
|
FPI 0703F-120M |
12 |
± 20% |
1V/2.52M |
0.0897 |
1.39 |
|
FPI 0703F-150M |
15 |
± 20% |
1V/2.52M |
0.104 |
1.24 |
|
FPI 0703F-180M |
18 |
± 20% |
1V/2.52M |
0.111 |
1.12 |
|
FPI 0703F-220M |
22 |
± 20% |
1V/2.52M |
0.129 |
1.07 |
|
FPI 0703F-270M |
27 |
± 20% |
1V/2.52M |
0.153 |
0.97 |
|
FPI 0703F-330M |
33 |
± 20% |
1V/2.52M |
0.17 |
0.85 |
|
FPI 0703F-390M |
39 |
± 20% |
1V/2.52M |
0.217 |
0.74 |
|
FPI 0703F-470M |
47 |
± 20% |
1V/2.52M |
0.252 |
0.68 |
|
FPI 0703F-560K |
56 |
± 10% |
1V/2.52M |
0.282 |
0.64 |
|
FPI 0703F-680K |
68 |
± 10% |
1V/2.52M |
0.332 |
0.59 |
|
FPI 0703F-820K |
82 |
± 10% |
1V/2.52M |
0.406 |
0.54 |
|
FPI 0703F-101K |
100 |
± 10% |
1V/1K |
0.481 |
0.51 |
|
FPI 0703F-121K |
120 |
± 10% |
1V/1K |
0.536 |
0.49 |
|
FPI 0703F-151K |
150 |
± 10% |
1V/1K |
0.755 |
0.4 |
|
FPI 0703F-181K |
180 |
± 10% |
1V/1K |
1.022 |
0.36 |
|
FPI 0703F-221K |
220 |
± 10% |
1V/1K |
1.2 |
0.31 |
|
FPI 0703F-271K |
270 |
± 10% |
1V/1K |
1.306 |
0.29 |
|
FPI 0703F-331K |
330 |
± 10% |
1V/1K |
1.495 |
0.28 |
Package Size:
FPI0705
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 0705F-100M |
10 |
± 20% |
1V/2.52M |
0.07 |
2.3 |
|
FPI 0705F-120M |
12 |
± 20% |
1V/2.52M |
0.08 |
2 |
|
FPI 0705F-150M |
15 |
± 20% |
1V/2.52M |
0.09 |
1.8 |
|
FPI 0705F-180M |
18 |
± 20% |
1V/2.52M |
0.1 |
1.6 |
|
FPI 0705F-220M |
22 |
± 20% |
1V/2.52M |
0.11 |
1.5 |
|
FPI 0705F-270M |
27 |
± 20% |
1V/2.52M |
0.12 |
1.3 |
|
FPI 0705F-330M |
33 |
± 20% |
1V/2.52M |
0.13 |
1.2 |
|
FPI 0705F-390M |
39 |
± 20% |
1V/2.52M |
0.16 |
1.1 |
|
FPI 0705F-470K |
47 |
± 10% |
1V/2.52M |
0.18 |
1.1 |
|
FPI 0705F-560K |
56 |
± 10% |
1V/2.52M |
0.24 |
0.94 |
|
FPI 0705F-680K |
68 |
± 10% |
1V/2.52M |
0.28 |
0.85 |
|
FPI 0705F-820K |
82 |
± 10% |
1V/2.52M |
0.37 |
0.78 |
|
FPI 0705F-101K |
100 |
± 10% |
1V/1K |
0.43 |
0.72 |
|
FPI 0705F-121K |
120 |
± 10% |
1V/1K |
0.47 |
0.66 |
|
FPI 0705F-151K |
150 |
± 10% |
1V/1K |
0.64 |
0.58 |
|
FPI 0705F-181K |
180 |
± 10% |
1V/1K |
0.71 |
0.51 |
|
FPI 0705F-221K |
220 |
± 10% |
1V/1K |
0.96 |
0.49 |
|
FPI 0705F-271K |
270 |
± 10% |
1V/1K |
1.11 |
0.42 |
|
FPI 0705F-331K |
330 |
± 10% |
1V/1K |
1.26 |
0.4 |
|
FPI 0705F-391K |
390 |
± 10% |
1V/1K |
1.77 |
0.36 |
|
FPI 0705F-471K |
470 |
± 10% |
1V/1K |
1.96 |
0.34 |
Package Size:
FPI1004
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 1004F-100M |
10 |
± 20% |
1V/2.52M |
0.053 |
2.38 |
|
FPI 1004F-120M |
12 |
± 20% |
1V/2.52M |
0.061 |
2.13 |
|
FPI 1004F-150M |
15 |
± 20% |
1V/2.52M |
0.07 |
1.87 |
|
FPI 1004F-180M |
18 |
± 20% |
1V/2.52M |
0.081 |
1.73 |
|
FPI 1004F-220M |
22 |
± 20% |
1V/2.52M |
0.088 |
1.6 |
|
FPI 1004F-270M |
27 |
± 20% |
1V/2.52M |
0.1 |
1.44 |
|
FPI 1004F-330M |
33 |
± 20% |
1V/2.52M |
0.12 |
1.26 |
|
FPI 1004F-390M |
39 |
± 20% |
1V/2.52M |
0.151 |
1.2 |
|
FPI 1004F-470M |
47 |
± 20% |
1V/2.52M |
0.17 |
1.1 |
|
FPI 1004F-560K |
56 |
± 10% |
1V/2.52M |
0.199 |
1.01 |
|
FPI 1004F-680K |
68 |
± 10% |
1V/2.52M |
0.223 |
0.91 |
|
FPI 1004F-820K |
82 |
± 10% |
1V/2.52M |
0.252 |
0.85 |
|
FPI 1004F-101K |
100 |
± 10% |
1V/1K |
0.344 |
0.74 |
|
FPI 1004F-121K |
120 |
± 10% |
1V/1K |
0.396 |
0.69 |
|
FPI 1004F-151K |
150 |
± 10% |
1V/1K |
0.544 |
0.61 |
|
FPI 1004F-181K |
180 |
± 10% |
1V/1K |
0.621 |
0.56 |
|
FPI 1004F-221K |
220 |
± 10% |
1V/1K |
0.721 |
0.53 |
|
FPI 1004F-271K |
270 |
± 10% |
1V/1K |
0.949 |
0.45 |
|
FPI 1004F-331K |
330 |
± 10% |
1V/1K |
1.1 |
0.42 |
|
FPI 1004F-391K |
390 |
± 10% |
1V/1K |
1.245 |
0.38 |
|
FPI 1004F-471K |
470 |
± 10% |
1V/1K |
1.526 |
0.35 |
|
FPI 1004F-561K |
560 |
± 10% |
1V/1K |
1.904 |
0.32 |
Package Size:
FPI1005
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (mΩ) max. |
IDC (A) max. |
|
FPI 1005F-100M |
10 |
± 20% |
1V/2.52M |
0.06 |
2.6 |
|
FPI 1005F-120M |
12 |
± 20% |
1V/2.52M |
0.07 |
2.45 |
|
FPI 1005F-150M |
15 |
± 20% |
1V/2.52M |
0.08 |
2.27 |
|
FPI 1005F-180M |
18 |
± 20% |
1V/2.52M |
0.09 |
2.15 |
|
FPI 1005F-220M |
22 |
± 20% |
1V/2.52M |
0.1 |
1.95 |
|
FPI 1005F-270M |
27 |
± 20% |
1V/2.52M |
0.11 |
1.76 |
|
FPI 1005F-330M |
33 |
± 20% |
1V/2.52M |
0.12 |
1.5 |
|
FPI 1005F-390M |
39 |
± 20% |
1V/2.52M |
0.14 |
1.37 |
|
FPI 1005F-470M |
47 |
± 20% |
1V/2.52M |
0.17 |
1.28 |
|
FPI 1005F-560M |
56 |
± 20% |
1V/2.52M |
0.19 |
1.17 |
|
FPI 1005F-680M |
68 |
± 20% |
1V/2.52M |
0.22 |
1.11 |
|
FPI 1005F-820M |
82 |
± 20% |
1V/2.52M |
0.25 |
1 |
|
FPI 1005F-101M |
100 |
± 20% |
1V/1K |
0.35 |
0.97 |
|
FPI 1005F-121M |
120 |
± 20% |
1V/1K |
0.4 |
0.89 |
|
FPI 1005F-151M |
150 |
± 20% |
1V/1K |
0.47 |
0.78 |
|
FPI 1005F-181M |
180 |
± 20% |
1V/1K |
0.63 |
0.72 |
|
FPI 1005F-221M |
220 |
± 20% |
1V/1K |
0.73 |
0.66 |
|
FPI 1005F-271M |
270 |
± 20% |
1V/1K |
0.97 |
0.57 |
|
FPI 1005F-331M |
330 |
± 20% |
1V/1K |
1.15 |
0.52 |
|
FPI 1005F-391M |
390 |
± 20% |
1V/1K |
1.3 |
0.48 |
|
FPI 1005F-471M |
470 |
± 20% |
1V/1K |
1.48 |
0.42 |
|
FPI 1005F-561M |
560 |
± 20% |
1V/1K |
1.9 |
0.33 |
|
FPI 1005F-681M |
680 |
± 20% |
1V/1K |
2.25 |
0.28 |
|
FPI 1005F-821M |
820 |
± 20% |
1V/1K |
2.55 |
0.24 |
