SDSL Series
Home » Products » Dip Type Ultra High Current Power Inductors
Product name :
SDSL Series
( 2841 reviews ) Views:2820
Color :
Size:
Material:
Product Description
1.Low profile very effective in space-conscious applications.
2.Low resistance
3.100% Lead(Pb) & Halogen-Free and RoHS compliant

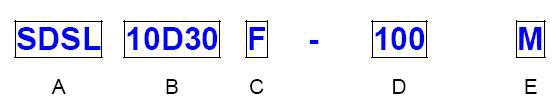

Part Numbering
|
|
A: |
Series |
|
|
B: |
Dimension |
|
|
C: |
Lead free type |
|
|
D: |
Inductance (100=10uH ) |
|
|
E: |
Inductance Tolerance ("M=±20%,N=±25% ,Y=±30%" ) |
Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
|
10D30 |
10.2±0.3 |
10.0±0.3 |
3.0 max. |
3.0±0.1 |
1.2±0.15 |
7.7±0.3 |
|
10D40 |
10.2±0.3 |
10.0±0.3 |
4.0 max. |
3.0±0.1 |
1.2±0.15 |
7.7±0.3 |
|
10D50 |
10.2±0.3 |
10.0±0.3 |
5.0 max. |
3.0±0.1 |
1.2±0.15 |
7.7±0.3 |
Eletrical Characteristics
Package Size:
SDSL10D30
|
Part Number |
Inductance (uH) |
Test Frequency (Hz) |
DCR (mΩ) max. |
I sat (A) max. |
I rms (A) typ. |
|
SDSL10D30F-R80Y |
0.80±30% |
0.1V/100K |
0.0057 |
11.2 |
8.3 |
|
SDSL10D30F-1R5Y |
1.5±30% |
0.1V/100K |
0.011 |
8 |
5.8 |
|
SDSL10D30F-2R2Y |
2.2±30% |
0.1V/100K |
0.0169 |
6.7 |
5.1 |
|
SDSL10D30F-3R3Y |
3.3±30% |
0.1V/100K |
0.021 |
5.56 |
4.7 |
|
SDSL10D30F-4R7Y |
4.7±30% |
0.1V/100K |
0.03 |
4.65 |
4 |
|
SDSL10D30F-6R8Y |
6.8±30% |
0.1V/100K |
0.035 |
3.84 |
3.6 |
|
SDSL10D30F-8R2Y |
8.2±30% |
0.1V/100K |
0.05 |
3.54 |
3 |
|
SDSL10D30F-100M |
10±20% |
0.1V/100K |
0.059 |
3.18 |
2.8 |
|
SDSL10D30F-150M |
15±20% |
0.1V/100K |
0.091 |
2.6 |
2.05 |
|
SDSL10D30F-220M |
22±20% |
0.1V/100K |
0.143 |
2.16 |
1.6 |
|
SDSL10D30F-330M |
33±20% |
0.1V/100K |
0.202 |
1.74 |
1.35 |
|
SDSL10D30F-470M |
47±20% |
0.1V/100K |
0.299 |
1.43 |
1.2 |
|
SDSL10D30F-560M |
56±20% |
0.1V/100K |
0.325 |
1.36 |
1.15 |
|
SDSL10D30F-680M |
68±20% |
0.1V/100K |
0.429 |
1.22 |
0.95 |
|
SDSL10D30F-820M |
82±20% |
0.1V/100K |
0.494 |
1.14 |
0.8 |
|
SDSL10D30F-101M |
100±20% |
0.1V/100K |
0.683 |
1.02 |
0.7 |
|
SDSL10D30F-121M |
120±20% |
0.1V/100K |
0.754 |
0.89 |
0.65 |
|
SDSL10D30F-151M |
150±20% |
0.1V/100K |
0.871 |
0.84 |
0.51 |
Package Size:
SDSL10D40
|
Part Number |
Inductance (uH) |
Test Frequency (Hz) |
DCR (mΩ) max. |
I sat (A) max. |
I rms (A) typ. |
|
SDSL10D40F-1R5Y |
1.5±30% |
0.1V/100K |
0.0081 |
10 |
6.5 |
|
SDSL10D40F-2R5Y |
2.5±30% |
0.1V/100K |
0.0105 |
7.5 |
6.1 |
|
SDSL10D40F-3R8Y |
3.8±30% |
0.1V/100K |
0.013 |
6 |
5.5 |
|
SDSL10D40F-5R2Y |
5.2±30% |
0.1V/100K |
0.022 |
5.5 |
5.4 |
|
SDSL10D40F-6R8Y |
6.8±30% |
0.1V/100K |
0.027 |
4.8 |
4.5 |
|
SDSL10D40F-7R0Y |
7.0±30% |
0.1V/100K |
0.027 |
4.8 |
4.5 |
|
SDSL10D40F-100M |
10±20% |
0.1V/100K |
0.035 |
4.4 |
3.8 |
|
SDSL10D40F-150M |
15±20% |
0.1V/100K |
0.05 |
3.6 |
3.1 |
|
SDSL10D40F-220M |
22±20% |
0.1V/100K |
0.073 |
2.9 |
2.5 |
|
SDSL10D40F-330M |
33±20% |
0.1V/100K |
0.093 |
2.3 |
2.2 |
|
SDSL10D40F-470M |
47±20% |
0.1V/100K |
0.155 |
2.1 |
1.9 |
|
SDSL10D40F-680M |
68±20% |
0.1V/100K |
0.213 |
1.5 |
1.42 |
|
SDSL10D40F-101M |
100±20% |
0.1V/100K |
0.304 |
1.35 |
1.25 |
|
SDSL10D40F-151M |
150±20% |
0.1V/100K |
0.506 |
1.15 |
0.82 |
|
SDSL10D40F-221M |
220±20% |
0.1V/100K |
0.756 |
0.92 |
0.7 |
|
SDSL10D40F-331M |
330±20% |
0.1V/100K |
1.09 |
0.7 |
0.52 |
Package Size:
SDSL10D50
|
Part Number |
Inductance (uH) |
Test Frequency (Hz) |
DCR (mΩ) max. |
I sat (A) max. |
I rms (A) typ. |
|
SDSL10D50F-R80Y |
0.8±30% |
0.1V/100K |
4.3 |
9.5 |
13.5 |
|
SDSL10D50F-1R5Y |
1.5±30% |
0.1V/100K |
5.8 |
8.3 |
10.5 |
|
SDSL10D50F-2R2Y |
2.2±30% |
0.1V/100K |
7.2 |
7.5 |
9.25 |
|
SDSL10D50F-3R3Y |
3.3±30% |
0.1V/100K |
10.4 |
6.5 |
7.8 |
|
SDSL10D50F-4R7Y |
4.7±30% |
0.1V/100K |
12.3 |
6.1 |
6.4 |
|
SDSL10D50F-6R8Y |
6.8±30% |
0.1V/100K |
18 |
5.4 |
5.4 |
|
SDSL10D50F-8R2Y |
8.2±30% |
0.1V/100K |
20 |
5 |
4.85 |
|
SDSL10D50F-100M |
10±20% |
0.1V/100K |
26 |
4.5 |
4.45 |
|
SDSL10D50F-120M |
12±20% |
0.1V/100K |
33 |
3.8 |
4 |
|
SDSL10D50F-150M |
15±20% |
0.1V/100K |
41 |
3.4 |
3.6 |
|
SDSL10D50F-180M |
18±20% |
0.1V/100K |
46 |
3.1 |
3.2 |
|
SDSL10D50F-220M |
22±20% |
0.1V/100K |
61 |
2.9 |
2.95 |
|
SDSL10D50F-270M |
27±20% |
0.1V/100K |
69 |
2.6 |
2.7 |
|
SDSL10D50F-330M |
33±20% |
0.1V/100K |
84 |
2.5 |
2.4 |
|
SDSL10D50F-390M |
39±20% |
0.1V/100K |
106 |
2.25 |
2.3 |
|
SDSL10D50F-470M |
47±20% |
0.1V/100K |
130 |
2 |
2 |
|
SDSL10D50F-560M |
56±20% |
0.1V/100K |
149 |
1.9 |
1.9 |
|
SDSL10D50F-680M |
68±20% |
0.1V/100K |
201 |
1.6 |
1.65 |
|
SDSL10D50F-820M |
82±20% |
0.1V/100K |
227 |
1.45 |
1.5 |
|
SDSL10D50F-101M |
100±20% |
0.1V/100K |
253 |
1.35 |
1.35 |
|
SDSL10D50F-121M |
120±20% |
0.1V/100K |
303 |
1.18 |
1.28 |
|
SDSL10D50F-151M |
150±20% |
0.1V/100K |
370 |
1.1 |
1.12 |
|
SDSL10D50F-181M |
180±20% |
0.1V/100K |
419 |
1 |
1.04 |
|
SDSL10D50F-221M |
220±20% |
0.1V/100K |
500 |
0.94 |
0.94 |
|
SDSL10D50F-271M |
270±20% |
0.1V/100K |
672 |
0.8 |
0.84 |
|
SDSL10D50F-331M |
330±20% |
0.1V/100K |
812 |
0.73 |
0.75 |
|
SDSL10D50F-391M |
390±20% |
0.1V/100K |
953 |
0.7 |
0.7 |
|
SDSL10D50F-471M |
470±20% |
0.1V/100K |
1289 |
0.54 |
0.6 |
|
SDSL10D50F-561M |
560±20% |
0.1V/100K |
1430 |
0.52 |
0.54 |
|
SDSL10D50F-681M |
680±20% |
0.1V/100K |
1599 |
0.51 |
0.52 |
|
SDSL10D50F-821M |
820±20% |
0.1V/100K |
1768 |
0.48 |
0.5 |
|
SDSL10D50F-102M |
1000±20% |
0.1V/100K |
1989 |
0.42 |
0.48 |
