SSL Series
Home » Products » Dip Type Ultra High Current Power Inductors
Product name :
SSL Series
( 2417 reviews ) Views:2396
Color :
Size:
Material:
Product Description
1.Low profile very effective in space-conscious applications.
2.Low resistance and high energy storage.
3.100% Lead(Pb) & Halogen-Free and RoHS compliant

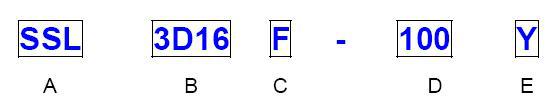

Part Numbering
|
|
A: |
Series |
|
|
B: |
Dimension |
|
|
C: |
Lead free type |
|
|
D: |
Inductance (100=10uH ) |
|
|
E: |
Inductance Tolerance (Y=±30% ) |
Dimension
|
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
|
3D16 |
4.1 max. |
4.1 max. |
1.9 max. |
1.2 ref. |
|
4D18 |
5.3 max. |
5.3 max. |
2.0 max. |
1.5 ref. |
|
4D28 |
5.3 max. |
5.3 max. |
3.0 max. |
1.5 ref. |
|
5D18 |
6.1 max. |
6.1 max. |
2.0 max. |
2.0 ref. |
|
5D28 |
6.1 max. |
6.1 max. |
3.0 max. |
2.0 ref. |
|
6D28 |
7.1 max. |
7.1 max. |
3.0 max. |
2.0 ref. |
|
6D38 |
7.1 max. |
7.1 max. |
4.0 max. |
2.0 ref. |
Eletrical Characteristics
Package Size:
SSL3D16
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 3D16F-1R5Y |
1.5 |
30% |
0.1V/100K |
0.052 |
1.55 |
|
SSL 3D16F-2R2Y |
2.2 |
30% |
0.1V/100K |
0.072 |
1.2 |
|
SSL 3D16F-3R3Y |
3.3 |
30% |
0.1V/100K |
0.085 |
1.1 |
|
SSL 3D16F-4R7Y |
4.7 |
30% |
0.1V/100K |
0.105 |
0.9 |
|
SSL 3D16F-6R8Y |
6.8 |
30% |
0.1V/100K |
0.17 |
0.73 |
|
SSL 3D16F-100Y |
10 |
30% |
0.1V/100K |
0.21 |
0.55 |
|
SSL 3D16F-150Y |
15 |
30% |
0.1V/100K |
0.295 |
0.45 |
|
SSL 3D16F-220Y |
22 |
30% |
0.1V/100K |
0.43 |
0.4 |
|
SSL 3D16F-330Y |
33 |
30% |
0.1V/100K |
0.675 |
0.32 |
Package Size:
SSL4D18
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 4D18F-1R0Y |
1 |
30% |
0.1V/100K |
0.045 |
1.72 |
|
SSL 4D18F-2R2Y |
2.2 |
30% |
0.1V/100K |
0.075 |
1.32 |
|
SSL 4D18F-2R7Y |
2.7 |
30% |
0.1V/100K |
0.105 |
1.28 |
|
SSL 4D18F-3R3Y |
3.3 |
30% |
0.1V/100K |
0.11 |
1.04 |
|
SSL 4D18F-3R9Y |
3.9 |
30% |
0.1V/100K |
0.155 |
0.88 |
|
SSL 4D18F-4R7Y |
4.7 |
30% |
0.1V/100K |
0.162 |
0.84 |
|
SSL 4D18F-5R6Y |
5.6 |
30% |
0.1V/100K |
0.17 |
0.8 |
|
SSL 4D18F-6R8Y |
6.8 |
30% |
0.1V/100K |
0.2 |
0.76 |
|
SSL 4D18F-8R2Y |
8.2 |
30% |
0.1V/100K |
0.245 |
0.68 |
|
SSL 4D18F-100Y |
10 |
30% |
0.1V/100K |
0.2 |
0.61 |
|
SSL 4D18F-120Y |
12 |
30% |
0.1V/100K |
0.21 |
0.56 |
|
SSL 4D18F-150Y |
15 |
30% |
0.1V/100K |
0.24 |
0.5 |
|
SSL 4D18F-180Y |
18 |
30% |
0.1V/100K |
0.338 |
0.48 |
|
SSL 4D18F-220Y |
22 |
30% |
0.1V/100K |
0.397 |
0.41 |
|
SSL 4D18F-270Y |
27 |
30% |
0.1V/100K |
0.441 |
0.35 |
|
SSL 4D18F-330Y |
33 |
30% |
0.1V/100K |
0.694 |
0.32 |
|
SSL 4D18F-390Y |
39 |
30% |
0.1V/100K |
0.709 |
0.3 |
Package Size:
SSL4D28
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 4D28F-1R2Y |
1.2 |
30% |
0.1V/100K |
0.024 |
2.56 |
|
SSL 4D28F-1R8Y |
1.8 |
30% |
0.1V/100K |
0.028 |
2.2 |
|
SSL 4D28F-2R2Y |
2.2 |
30% |
0.1V/100K |
0.031 |
2.04 |
|
SSL 4D28F-2R7Y |
2.7 |
30% |
0.1V/100K |
0.043 |
1.6 |
|
SSL 4D28F-3R3Y |
3.3 |
30% |
0.1V/100K |
0.049 |
1.57 |
|
SSL 4D28F-3R9Y |
3.9 |
30% |
0.1V/100K |
0.065 |
1.44 |
|
SSL 4D28F-4R7Y |
4.7 |
30% |
0.1V/100K |
0.072 |
1.32 |
|
SSL 4D28F-5R6Y |
5.6 |
30% |
0.1V/100K |
0.101 |
1.17 |
|
SSL 4D28F-6R8Y |
6.8 |
30% |
0.1V/100K |
0.109 |
1.12 |
|
SSL 4D28F-8R2Y |
8.2 |
30% |
0.1V/100K |
0.118 |
1.04 |
|
SSL 4D28F-100Y |
10 |
30% |
0.1V/100K |
0.128 |
1 |
|
SSL 4D28F-120Y |
12 |
30% |
0.1V/100K |
0.132 |
0.84 |
|
SSL 4D28F-150Y |
15 |
30% |
0.1V/100K |
0.149 |
0.76 |
|
SSL 4D28F-180Y |
18 |
30% |
0.1V/100K |
0.166 |
0.72 |
|
SSL 4D28F-220Y |
22 |
30% |
0.1V/100K |
0.235 |
0.7 |
|
SSL 4D28F-270Y |
27 |
30% |
0.1V/100K |
0.261 |
0.58 |
|
SSL 4D28F-330Y |
33 |
30% |
0.1V/100K |
0.378 |
0.56 |
|
SSL 4D28F-390Y |
39 |
30% |
0.1V/100K |
0.384 |
0.5 |
|
SSL 4D28F-470Y |
47 |
30% |
0.1V/100K |
0.587 |
0.48 |
|
SSL 4D28F-560Y |
56 |
30% |
0.1V/100K |
0.625 |
0.41 |
|
SSL 4D28F-680Y |
68 |
30% |
0.1V/100K |
0.699 |
0.35 |
|
SSL 4D28F-820Y |
82 |
30% |
0.1V/100K |
0.915 |
0.32 |
|
SSL 4D28F-101Y |
100 |
30% |
0.1V/100K |
1.02 |
0.29 |
|
SSL 4D28F-121Y |
120 |
30% |
0.1V/100K |
1.27 |
0.27 |
|
SSL 4D28F-151Y |
150 |
30% |
0.1V/100K |
1.35 |
0.24 |
|
SSL 4D28F-181Y |
180 |
30% |
0.1V/100K |
1.54 |
0.22 |
Package Size:
SSL5D18
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 5D18F-4R1Y |
4.1 |
30% |
0.1V/10K |
0.057 |
1.95 |
|
SSL 5D18F-5R4Y |
5.4 |
30% |
0.1V/10K |
0.076 |
1.6 |
|
SSL 5D18F-6R2Y |
6.2 |
30% |
0.1V/10K |
0.096 |
1.4 |
|
SSL 5D18F-8R9Y |
8.9 |
30% |
0.1V/10K |
0.116 |
1.25 |
|
SSL 5D18F-100Y |
10 |
30% |
0.1V/10K |
0.124 |
1.2 |
|
SSL 5D18F-120Y |
12 |
30% |
0.1V/10K |
0.153 |
1.1 |
|
SSL 5D18F-150Y |
15 |
30% |
0.1V/10K |
0.196 |
0.97 |
|
SSL 5D18F-180Y |
18 |
30% |
0.1V/10K |
0.21 |
0.85 |
|
SSL 5D18F-220Y |
22 |
30% |
0.1V/10K |
0.29 |
0.8 |
|
SSL 5D18F-270Y |
27 |
30% |
0.1V/10K |
0.33 |
0.75 |
|
SSL 5D18F-330Y |
33 |
30% |
0.1V/10K |
0.386 |
0.65 |
|
SSL 5D18F-390Y |
39 |
30% |
0.1V/10K |
0.52 |
0.57 |
|
SSL 5D18F-470Y |
47 |
30% |
0.1V/10K |
0.595 |
0.54 |
|
SSL 5D18F-560Y |
56 |
30% |
0.1V/10K |
0.665 |
0.5 |
|
SSL 5D18F-680Y |
68 |
30% |
0.1V/10K |
0.84 |
0.43 |
|
SSL 5D18F-820Y |
82 |
30% |
0.1V/10K |
0.978 |
0.41 |
|
SSL 5D18F-101Y |
100 |
30% |
0.1V/10K |
1.2 |
0.36 |
Eletrical Characteristics
Package Size:
SSL5D28
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 5D28F-2R6Y |
2.6 |
30% |
0.1V/10K |
0.018 |
2.6 |
|
SSL 5D28F-3R0Y |
3 |
30% |
0.1V/10K |
0.024 |
2.4 |
|
SSL 5D28F-4R2Y |
4.2 |
30% |
0.1V/10K |
0.031 |
2.2 |
|
SSL 5D28F-5R3Y |
5.3 |
30% |
0.1V/10K |
0.038 |
1.9 |
|
SSL 5D28F-6R2Y |
6.2 |
30% |
0.1V/10K |
0.045 |
1.8 |
|
SSL 5D28F-8R2Y |
8.2 |
30% |
0.1V/10K |
0.053 |
1.6 |
|
SSL 5D28F-100Y |
10 |
30% |
0.1V/10K |
0.065 |
1.3 |
|
SSL 5D28F-120Y |
12 |
30% |
0.1V/10K |
0.076 |
1.2 |
|
SSL 5D28F-150Y |
15 |
30% |
0.1V/10K |
0.103 |
1.1 |
|
SSL 5D28F-180Y |
18 |
30% |
0.1V/10K |
0.11 |
1 |
|
SSL 5D28F-220Y |
22 |
30% |
0.1V/10K |
0.122 |
0.9 |
|
SSL 5D28F-270Y |
27 |
30% |
0.1V/10K |
0.175 |
0.85 |
|
SSL 5D28F-330Y |
33 |
30% |
0.1V/10K |
0.189 |
0.75 |
|
SSL 5D28F-390Y |
39 |
30% |
0.1V/10K |
0.212 |
0.7 |
|
SSL 5D28F-470Y |
47 |
30% |
0.1V/10K |
0.26 |
0.62 |
|
SSL 5D28F-560Y |
56 |
30% |
0.1V/10K |
0.305 |
0.58 |
|
SSL 5D28F-680Y |
68 |
30% |
0.1V/10K |
0.355 |
0.52 |
|
SSL 5D28F-820Y |
82 |
30% |
0.1V/10K |
0.463 |
0.46 |
|
SSL 5D28F-101Y |
100 |
30% |
0.1V/10K |
0.52 |
0.42 |
Package Size:
SSL6D28
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 6D28F-3R0Y |
3 |
30% |
0.1V/10K |
0.024 |
3 |
|
SSL 6D28F-3R9Y |
3.9 |
30% |
0.1V/10K |
0.027 |
2.6 |
|
SSL 6D28F-5R0Y |
5 |
30% |
0.1V/10K |
0.031 |
2.4 |
|
SSL 6D28F-6R0Y |
6 |
30% |
0.1V/10K |
0.035 |
2.25 |
|
SSL 6D28F-7R3Y |
7.3 |
30% |
0.1V/10K |
0.054 |
2.1 |
|
SSL 6D28F-8R6Y |
8.6 |
30% |
0.1V/10K |
0.058 |
1.85 |
|
SSL 6D28F-100Y |
10 |
30% |
0.1V/10K |
0.065 |
1.7 |
|
SSL 6D28F-120Y |
12 |
30% |
0.1V/10K |
0.07 |
1.55 |
|
SSL 6D28F-150Y |
15 |
30% |
0.1V/10K |
0.084 |
1.4 |
|
SSL 6D28F-180Y |
18 |
30% |
0.1V/10K |
0.095 |
1.32 |
|
SSL 6D28F-220Y |
22 |
30% |
0.1V/10K |
0.128 |
1.2 |
|
SSL 6D28F-270Y |
27 |
30% |
0.1V/10K |
0.142 |
1.05 |
|
SSL 6D28F-330Y |
33 |
30% |
0.1V/10K |
0.165 |
0.97 |
|
SSL 6D28F-390Y |
39 |
30% |
0.1V/10K |
0.21 |
0.86 |
|
SSL 6D28F-470Y |
47 |
30% |
0.1V/10K |
0.238 |
0.8 |
|
SSL 6D28F-560Y |
56 |
30% |
0.1V/10K |
0.277 |
0.73 |
|
SSL 6D28F-680Y |
68 |
30% |
0.1V/10K |
0.304 |
0.65 |
|
SSL 6D28F-820Y |
82 |
30% |
0.1V/10K |
0.39 |
0.6 |
|
SSL 6D28F-101Y |
100 |
30% |
0.1V/10K |
0.535 |
0.54 |
Eletrical Characteristics
Package Size:
SSL6D38
|
Part Number |
Inductance (uH) |
Tolerance (%) |
Test Frequency (Hz) |
DCR (Ω) max. |
IDC (A) max. |
|
SSL 6D38F-3R3Y |
3.3 |
30% |
0.1V/100K |
0.02 |
3.5 |
|
SSL 6D38F-5R0Y |
5 |
30% |
0.1V/100K |
0.024 |
2.9 |
|
SSL 6D38F-6R2Y |
6.2 |
30% |
0.1V/100K |
0.027 |
2.5 |
|
SSL 6D38F-7R4Y |
7.4 |
30% |
0.1V/100K |
0.031 |
2.3 |
|
SSL 6D38F-8R7Y |
8.7 |
30% |
0.1V/100K |
0.034 |
2.2 |
|
SSL 6D38F-100Y |
10 |
30% |
0.1V/100K |
0.038 |
2 |
|
SSL 6D38F-120Y |
12 |
30% |
0.1V/100K |
0.053 |
1.7 |
|
SSL 6D38F-150Y |
15 |
30% |
0.1V/100K |
0.057 |
1.6 |
|
SSL 6D38F-180Y |
18 |
30% |
0.1V/100K |
0.092 |
1.5 |
|
SSL 6D38F-220Y |
22 |
30% |
0.1V/100K |
0.096 |
1.3 |
|
SSL 6D38F-270Y |
27 |
30% |
0.1V/100K |
0.109 |
1.2 |
|
SSL 6D38F-330Y |
33 |
30% |
0.1V/100K |
0.124 |
1.1 |
|
SSL 6D38F-390Y |
39 |
30% |
0.1V/100K |
0.138 |
1 |
|
SSL 6D38F-470Y |
47 |
30% |
0.1V/100K |
0.155 |
0.95 |
|
SSL 6D38F-560Y |
56 |
30% |
0.1V/100K |
0.202 |
0.85 |
|
SSL 6D38F-680Y |
68 |
30% |
0.1V/100K |
0.234 |
0.75 |
|
SSL 6D38F-820Y |
82 |
30% |
0.1V/100K |
0.324 |
0.7 |
|
SSL 6D38F-101Y |
100 |
30% |
0.1V/100K |
0.358 |
0.65 |
